ZLAN9809M industrial 4G router is a 4G/WIFI communication product with excellent performance developed by ZLAN based on 4G network requirements. It is mainly used in the data transmission service of industry users, combined with routing, switching, 4G, WLAN, encryptionand other technologies, providing a variety of functions such as RJ45 to RJ45/WIFI, WIFI to RJ45/WIFI, 4G to RJ45/WIFI

The ZLAN9809M features a high-performance 32-bit processor that can handle protocols and large amounts of data at high speeds and can be paired with a variety of 4G industrial modules.

Provides 4 10/100M LAN ports, 1 WAN port, WIFI interface, 4G. It can connect to various terminal devices. Supports the WEB configuration and upgrade mode for easy management.

Product specification

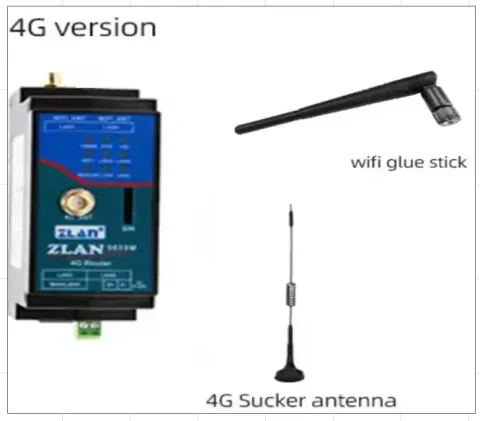

Interface LAN port *4, WAN port *1, SIM*1, 4G antenna *1, wi ENERGY antenna *2

Housing material Alloy flame retardant plastics

Size 37.6(L)x 83.6(W)x 89.2(H)mm

Power port 2PIN terminal

Antenna port 50 OHM/SMA sucker antenna

SIM card Voltage: 3V, 1.8V; Size: Medium card (small card can be purchased to use)

Double bit Push-button reset factory Settings

Installation mode 35mm rail mounting

Communication interface

Wireless mode 4G CAT1 supports three modes:
B1/B3/B5/B8@FDD LTEB34/B38/B39/B40/B41
@TDD-LTEB3/B8@GSM including China Unicom 4G, 2G, mobile 4G,
2G and China Telecom 4G networks.

4G transmission rate LTE: Max 10Mbps (downlink) /Max 5 Mbps (uplink) GPRS: 85.6Kbps (downlink) /Max85.6Kbps (Uplink)

WIFI support 2.4gIEEE 802.11b/g/n

Network port 10M/100M

Device function

Network port to network port /WIFI, WIFI to network port /WIFI, 4G to network port /WIFI

Advanced functions Firewall, Static routing, Log services, Channel analysis, DHCP/DNS, Network Diagnostics, Host Name mapping

Configuration mode WEB Page Configuration (default: 192.168.8.1)

Hardware parameter

Input voltage 9 ~ 24V DC

Configuration mode WEB Page Configuration (default: 192.168.8.1)

Environment requirements

Operating temperature, humidity -40~85°C 5~95% RH

Storage temperature, humidity -40~120°C 5~95% RH
