Product Description

Description:

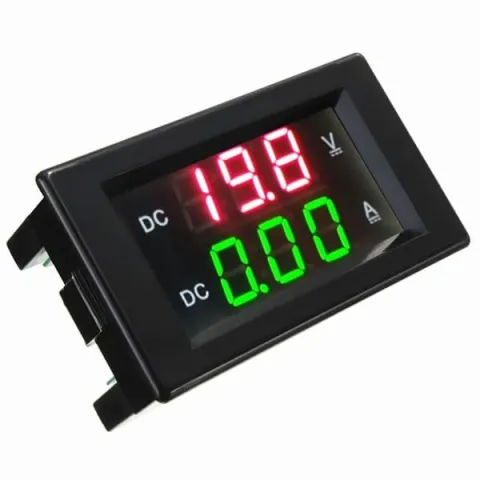

YB4835VA 0~100V 20A Double Display Voltmeter Current Meter Digital LED

Features:

The double table small size, can simultaneously, with the screen display voltage, current.

A total of design, which is a measure of the ends of the earth wire and the power supply end of the ground is interlinked, so the header only on the "negative" test current.

Equipped with voltage calibration potentiometer, current calibration potentiometer, such as error, can be their own calibration.

Automatic design of decimal point.

Use of "all the shell" design, with the back cover, safe and reliable, dust.

Anti disturbance ability, display refresh rate.

Convenient wiring, wide use, can be used to monitor the battery, DC can adjust the power, or other equipment, voltage, current changes state

With exquisite SMT process, so the consistency is very good.

Specifications:

Test voltage: 0-100V

Power supply: 3.5-30V

Test current: 20A

Working current: <20mA

Display mode: 0.39 "LED, voltage – red, current – Green

Dimensions: 70 x 40 x 30 mm

Mounting hole: 68 x 38 mm

The measurement rate: more than 500mS/ times

Measurement accuracy: 1% (1 words)

Working temperature: -10 ~ +65

Working humidity: 10 ~ 80% (no condensation)

Working pressure: 80 ~ 106kPa

No direct exposure to sunlight.

Package include:

1 x Double Display Voltmeter Current Meter

Details pictures:

YB4835VA 0-100V 20A Double Display Voltmeter Current Meter

YB4835VA 0-100V 20A Double Display Voltmeter Current Meter
