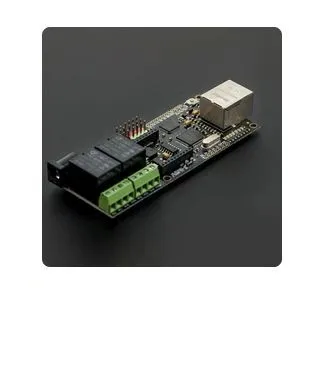

Internet of things has become so easy. With Xboard Relay, you can not only monitor data through internet, but also control it through internet. The Xboard Relay combines an Atmega 32u4 microprocessor and wiz5100 chip which is fully compatible with Arduino Lendardo and Ethernet library, it has build-in Xbee socket and 2 Relays which allow an easy sensoring and controlling over internet.

As the W5100 Ethernet chip will get hot, when it is working. You could try to add a heatsink on the chip.

Not like previous X-board, X-board relay has no programming adapter required. A micro usb cable is the only hardware needed to upload sketch.

SPECIFICATION

MCU:Atmega 32u4

Clock Speed: 16 MHz

Flash Memory: 32 KB (ATmega32u4) of which 4 KB used by bootloader

SRAM: 2.5 KB (ATmega32u4)

EEPROM: 1 KB (ATmega32u4)

Ethernet Chip: Wiz5100

Power Supply: 7.2 - 12V

USB Supply: Micro USB @ 5V

Pin out:2 Analog/1 I2C/4 Digital Pin Out

Relay Information

Rated through-current: 10A (NO) 5A (NC)

Maximum switching voltage: 150VAC 24VDC

Digital interface

Control signal: TTL level

Contact Rating (Res. Load):10A 277VAC / 24VDC

Max. switching voltage 250VAC / 30VDC 250VAC / 30VDC

Max. switching current 15A

Max. switching power 2770VA 240W 2770VA 240W

UL Rating: 10A 120VAC /10A 277VAC

Operate tiem (at nomi. Vot.): 10ms

Release time (at nomi. Vot.): 5ms
