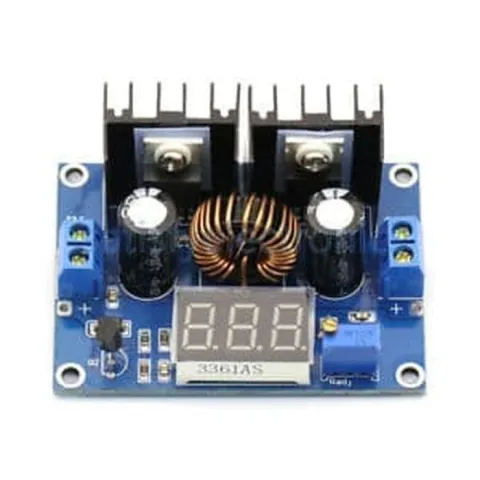

200W XL4016 PWM Step Down DC-DC Module (4-38V to 1,25-36V, 8A max)

8A XL4016 XH-M404 DC-DC STEP DOWN REGULATOR VOLTAGE LED DIPSLAY

8A XL4016 200W XH-M401 DC-DC 4-40V TO 1.25-36V STEP DOWN REGULATOR

XH-M404 8A DC Step-down Module with LED Voltage Display XL4016E1

Dilengkapi dengan LED display untuk tegangan outputnya.

Product name: DC-DC voltage regulator

Regulating mode: PWM modulation

Input voltage: DC4-40V

Output range: DC1.25-36V

Maximum current: 8A

Maximum power: 200W

Conversion efficiency: 94%

Switching frequency: 180KHz

Size: 61 * 41 * 27mm

XH-M404 XL4016 8A DC Voltmeter PWM 4-36V To 1.25-36V Step-Down Power Module

Specifications:

100% Brand New and High Quality.

Shape: Same as the picture show

1. Type: XH-M404 Regulator

2. Size: 64mm x 47mm (LxW)

3. Regulator mode: PWM modulation

4. Input voltage: DC4-38V

5. Output voltage: DC1.25-36V

6. Maximum current: 8A (long time recommended 5A)

7. Maximum power: 200W

8. Conversion efficiency: 95%

9. Switching frequency: 180KHz

10. Other functions: short circuit protection, input reverse protection, over-temperature protection (over-temperature cut off automatically)

11.Display method: 0.36 inch 3 red digital tube

Package included:

1PC X XL4016 Voltmeter PWM Power Module

XL4016 PWM 200W Step Down DC-DC Module (4-38V to 1,25-36V, 8A max)

Rp 45.746
