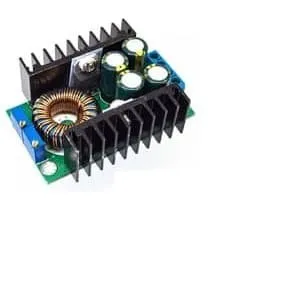

XL4016 Buck Converter Step-Down CC CV Power Module 7-32V To 0.8-28V 12A 300W

1. Module properties: Non-isolated step-down constant current, constant voltage module (CC CV) charging module

2. Input voltage: DC 7-32V

3. Output voltage: (1) DC 0.8-28V continuously adjustable. (2) Fixed output:Choose between 0.8v-28v

4. Output Current: 8A (when power tube's temperature exceeds 65 degrees, please add cooling fan)

5. Constant current range: 0.2-8A ( adjustable )

6. Turn lamp current: Constant current value * ( 0.1 ) , turn the lamp current and constant value linkage,

such as constant current value is 3A, turn the lamp current is set to a constant current is 0.1 times (0.1 * 3A = 0.3A).

7. Lowest pressure: 1V

8. Output Power: Maximum power is about 300W

9. Conversion efficiency: Up to about 95%

10. Operating frequency: 300KHZ

11. Output ripple: 20M bandwidth

12. Input 24V output 12V 5A ripple around 50mV (Excluding noise)

13. Output short circuit protection : Yes, constant current

14. Input reverse polarity protection: None

15. Output prevent backflow: None

16. Wiring: Terminal

17. No-load current: Typical 20mA (24V switch 12V) ease) , counterclockwise (decrease),

the potentiometer(CV) closed to the input voltage is used to regulate voltage, the potentiometer(CC)

closed to output voltage is used to regulate current (CC)

22. Operating temperature: Industrial grade (-40 C to +85 C) ( please note the actual use

of the power tube temperature , high temperature heat strengthened)

23. Indicator: dual color indicator, charging indicator light is red, the green light means

fully charged ( No load is green )

24. Size(approx): 65 x 47 x 22mm (L x W x H)

25.Precision of constant current and temperature: On the actual test, the module temperature from 25 degrees

to 60 degrees, the constant current value change is less than 5% (5A c

XL4016 Buck Converter StepDown CC CV Power Module 7-32V To 0.8-28V 12A

Rp 46.982
