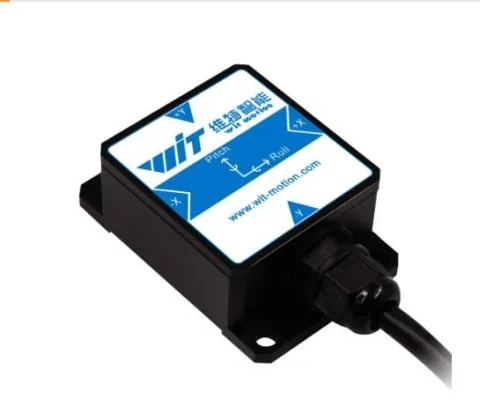

WitMotion SINDT RS485 IMU 2 Axis Sensor Digital Tilt Angle Inclinometer (Roll Pitch)&IP67 Waterproof& Anti-vibration on Android/PC/MCU

● (1) Dual axis Inclination Measuring: X-axis (-180 degree, 180 degree) Y-axis (-90 degree, 90 degree), Dual axis Digital Output Type (200HZ Max output rate), 0.05 degree Precision, IP67 Waterproof Protection, Anti-vibration

● (2) Kalman Filtering: Integrated Kalman Filtering Algorithm ensures high-stability of angle data output even in high dynamic environment

● (3) In-built MEMS high-precision module: can real-time directly output attitude angle data (default 10 degree), provide PC software to set the alarm angle

● (4) BUY WITH CONFIRDENCE: R&D by WitMotion Team( 6-year Professional Attitude Measuring Solution Provider), Lifetime Technical Support: (Email: kyle@wit-motion.com, Mob/Whatsapp: +86 13652339539), Providing PC software, mobile phone APP, and 51 serial, STM32, Arduino, and Matlab sample code. Tutorial Link: https://wiki.wit-motion.com/english

● (5) What you get: 1 x WitMotion SINDT inclinometer(RS485 version 9-36V) +1 x + 1 x instructions card

SINDT’s scientific name is AHRS IMU sensor. A sensor measures 3-axis angle, angular velocity, acceleration. SINDT is employed where the industrial-level measurement accuracy is required. Its strength lies in the algorithm which can calculate three-axis angle accurately.

Ground breaking bias stability, low noise level and good vibration robustness

Persued for best data accuracy and stability: WTMOTION patented zero-bias automatic detection calibration algorithm and R&D dynamic fusion algorithm outperforms traditional accelerometer sensor

Technical Specifications:

Current: <40mA

Voltage: 9-36V (requiring a power source of 9-36V)

Baud Rate: 4800-961200 (adjustable)

Working Temperature: -40℃ ~ +85℃

Output Content: 3-axis Acceleration+Angle+Angular Velocity+Quaternion

Range: Acceleration (±16g), Gyroscope (±2000°/s), Angle (X, Z-axis: ±180°, Y ±9

WitMotion SINDT RS485 IMU 2 Axis Sensor Digital Tilt Angle Inclinomete

WitMotion SINDT RS485 IMU 2 Axis Sensor Digital Tilt Angle Inclinomete

Rp 2.334.360
