Function

1.Voltage

Measurement range: AC50～300V

Starting test voltage: 50V

Accuracy: ±1%

2.Current

Measurement range:0～100A

Display format:

＜10A display such as：9.99A

＜100A display such as：99.9A

Starting test current:0.02A

Accuracy: ±1%

3.Active Power

Measurement range:0～30kW

Display format:

＜10W display such as：9.99W

＜100W display such as：99.9W

＜1000W display such as：999W

＜10000W display such as：9.99kW

≥10000W display such as：30.0kW

Starting test power:0.5W

Accuracy: ±1%

4.Energy

Measurement range:0～1999kWh

Display format:

＜10kWhdisplay such as：9.99kWh

＜100kWhdisplay such as：99.9kWh

＜1000kWhdisplay such as：999kWh

＜10000kWh display such as：1999kWh

Over the test range will maintain the data, otherwise you reset it.

Accuracy: ±1%

Other Function

1.Backlight control

The backlight can be turned on or off by short press the key

2.Reset energy

Long press the key over 3 seconds until the energy data flash, then release the key, short press the key again to reset the energy, otherwise after 3 seconds it will stop flashing and the energy will not be reset.

3.Data Storage When the power off, the energy data and backlight status can be saved.

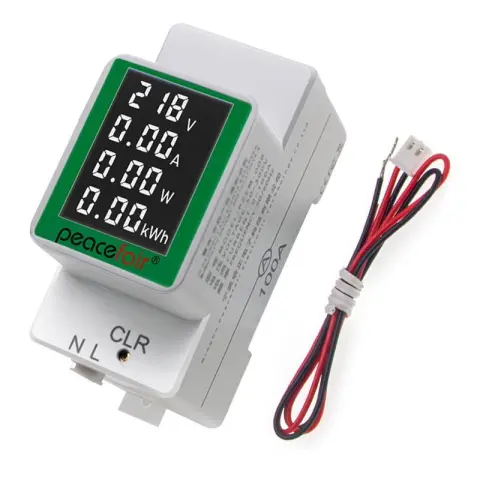

Watt Meter AC Digital KWH Peacefair PZEM-008 220V 100A Wattmeter Monitor Ammeter Voltmeter AC

Watt Meter AC Digital KWH Peacefair PZEM-008 220V 100A Wattmeter Monitor Ammeter Voltmeter AC

Rp 280.000

Deskripsi
