WT61C’s scientific name is the AHRS IMU sensor. A sensor measures 3-axis angle, angular velocity, acceleration. WitMotion WT61C integrates a high-precision gyroscope, accelerometer, and adopts a high-performance microprocessor, advanced dynamics fusion algorithm, and Kalman dynamic filtering algorithm to quickly analyze the module's current real-time motion posture.

By WitMotion advanced digital filtering technology, the sensor can effectively reduce measurement noise and improve measurement accuracy

With its in-built posture solver and the dynamic Kalman filter algorithm, the sensor can accurately output the current posture of the product in a dynamic environment. The measurement accuracy of the X and Y axis can reach 0.05°, and the stability is extremely high.

Persued for best data accuracy and stability: WTMOTION patented zero-bias automatic detection calibration algorithm and R&D dynamic fusion algorithm outperforms traditional accelerometer sensor

Technical Specifications:

Current: <40mA

Voltage: 5-36V (requiring a power source of 5-36V)

Data Output Frequency：20Hz / 100Hz

Baud Rate: 4800-230400

Output Content: 3-axis Acceleration+Angle+Angular Velocity

Range: Acceleration (±6g), Gyroscope (±2000°/s), Angle (X, Z-axis: ±180°, Y ±90°)

Resolution: Acceleration (0.005g), Gyroscope (0.61°/s)

Angle Accuracy(after calibrated): X, Y-axis: 0.05° (Static) , X, Y-axis: 0.1° (Dynamic)

Note: Because the Z-axis angle is calculated and anylyzed via the gyroscope. There will be acculated error on Z-axis angle by time when moving. It is required to calibrate.

https://witmotion-sensor.com/products/witmotion-wt61c-high-accuracy-accelerometer-sensor-6-axis-acceleration-16g-gyro-angle-xy-0-05-accuracy-with-kalman-filtering-mpu6050-ahrs-imu-unaffected-by-magnetic-field-for-arduino?_pos=1&_sid=c9ad735ce&_ss=r&variant=40749984809157

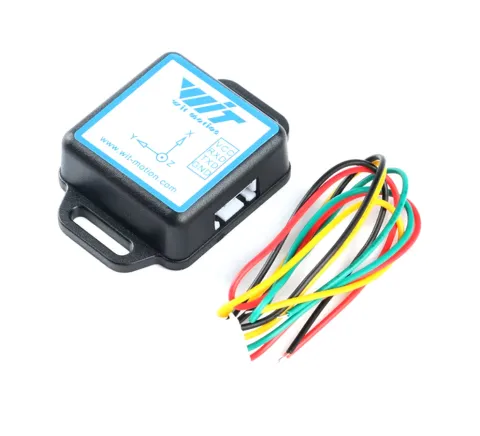

WT61PC 232 serial port six axis accelerometer tilt sensor electronic gyroscope module angle attitude
