Bring WiFi connectivity via Serial Host Interface, compatiable with Arduino

Quick Booting Time : under 20msec

Ultra Low Power through Dynamic Power Management (34µA at the Standby mode)

Operates with standard 802.11b/g/n access point at speed up to 11Mbps (802.11b)

Security Protocol : WEP, WPA/WPA2-PSK, Enterprise, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP

Operation Temperature : -40℃ ~ 85℃

Compact Size : 32 x 23.5 x 2.9 (mm)

CE, FCC, KCC Certified

Supports the module with chip antenna

802.11b/g/n

Specifications

Wifi Chip: WizFi210

Radio Protocol: IEEE 802.11b/g/n Compatible

Supported Data Rates: 11, 5.5, 2, 1 Mbps (IEEE 802.11b)

Modulation: DSSS and CCK

RF Operating Frequency: 2.4 - 2.497 GHz

Antenna Options: Chip antenna and U.FL connector for external antenna

Networking Protocols: UDP, TCP/IP (IPv4), DHCP, ARP, DNS, HTTP/HTTPS Client and Server(*)

Power Consumption(Typical): Standby = 34.0 µA Receive = 125.0 mA Transmit = 135.0 mA

RF Output Power (Typical): 8dBm ± 1dBm

Security Protocols: WEP, WPA/WPA2–PSK, Enterprise, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP

I/O Interface: UART, SPI(*), I2C(*), WAKE, ALARM, GPIOs

Power Source: 3.3V

Dimensions(except Antenna): 59 x 54 mm

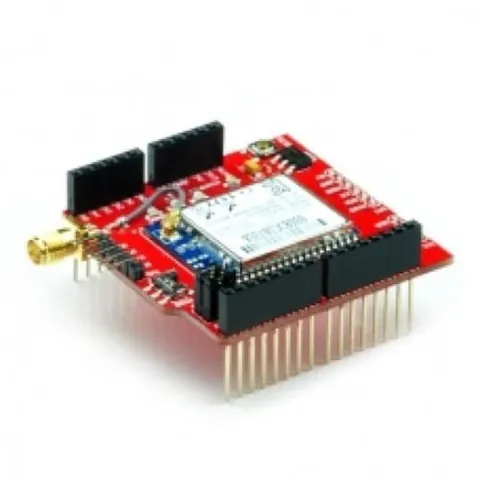

WIFI SHIELD FOR ARDUINO

Rp 1.137.192
