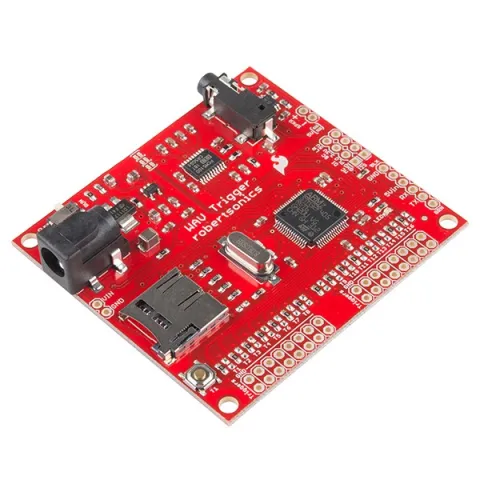

The WAV Trigger is a unique high-fidelity polyphonic audio player with surprising capabilities. Supporting up to 2048 uncompressed 16-bit, 44.1kHz wav files – the same quality as an audio CD – the WAV Trigger can play and mix up to 14 stereo tracks simultaneously and independently, with very low latency. Tracks can be controlled via 16 programmable trigger inputs, or by using a native serial control protocol or even MIDI.

Supports up to 2048 uncompressed 16-bit stereo WAV files at 44.1kHz – CD quality

Polyphonic! Play and mix up to 14 stereo tracks independently and simultaneously

Sample-accurate starting and playback of up to 14 parallel stereo tracks

Trigger-to-sound delay: 8 msecs typ, 12 msecs max

MIDI control: Velocity-sensitive triggering of up to16 banks of 128 tracks

Real-time playback rate control and MIDI Pitch Bend

Pause and resume individual or groups of tracks. Multiple random trigger ranges

True line-level stereo output: 2.1V RMS ground centered, 100dB SNR

On-board mono audio amplifier and speaker connector: 2W into 4 Ohms, 1.25W into 8 Ohms

16 trigger inputs are individually adjustable for contact closure, 3.3V or 5.0V control

Trigger inputs can be individually inverted, and/or set to be edge, latched or level sensitive

Volumes adjustable from +10dB to -70dB in 0.5dB increments

Firmware volume fades (attacks &decays) and cross-fades

A dedicated “Play” status digital output pin

3.3V and 5.0V output pins

Extensive serial control. Arduino library available. Pin compatible with SparkFun FTDI Basic

Hookup Accessories for WAV Trigger

Schematic

Eagle Files

Datasheet (STM32F405RGT6)

Hookup Guide

User Guide

Firmware Updates and Utilities

Product Page

GitHub

GitHub (Library)
