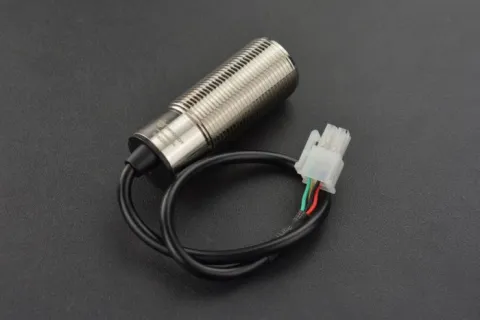

With an internal temperature compensation and accurate distance detection, URM08-RS485 is a combination of temperature measurement device and distance inspection tool. The inner is fully enclosed and the external is made of metal crust, which has brought advantages such as waterproof, dustproof and corrosion resistance. It is applicable to detections of liquid level, levels, and barrier applications. As a high standard sensor, it guarantees smaller blind zone and larger inspection range. On the premise of stable output data, it shows better measurement capabilities in the market of temperature sensors and distance detection sensors.

URM08 Beam Angle

SPECIFICATION

Operating Voltage: DC 6.0 ~ 12.0V

Operating Current: 250mA

Effective Range: 35 ~ 550 cm

Distance Resolution: 1cm

Temperature Resolution: 0.1°C

Temperature Error: ± 1 ℃

Measurement Period: 70ms

Operating Temperature Range: -10 ~ 70 ℃

Distance Error: ±1%

Operating Humidity Range: RH<75%

Acoustic Frequency: 38 ~ 42KHz

Direction Angle: 60 °

Protection Grade: IP65

Communication Interface: RS485 ModBus-RTU

DOCUMENTS

Product wiki

SHIPPING LIST

URM08 - Wafterproof Industrial Ultrasonic Distance Sensor (35~550cm, ModBus-RTU) x1

Screw Nuts x2

Metal Pads x2

Adaptor Wire x1

URM08 - Wafterproof Industrial Ultrasonic Distance Sensor (35~550cm, M

URM08 - Wafterproof Industrial Ultrasonic Distance Sensor (35~550cm, M
