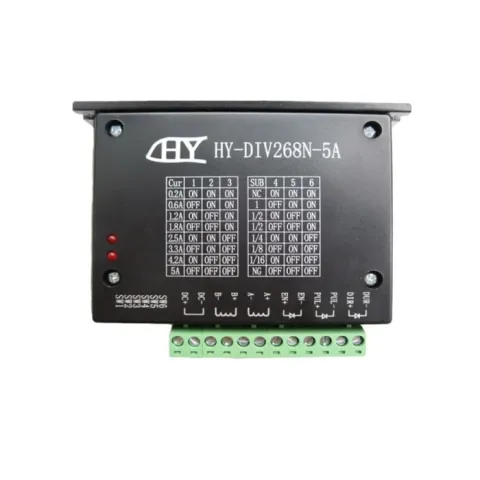

HY-DIV268N-5A is is a PWM chopper-type single-chip bipolar sinusoidal micro-step stepping motor driver. 2-phase bipolar-type stepping motor can be driven by only clock signal with low vibration and high efficiency. Suitable for drive Two-phase stepping motor dynamic voltage 12V to 48V, the maximum drive current is less than 5A and having outer diameter of 35 to 86 mm.

This drive uses the current loop subdivision control, the motor torque ripple is very small, low-speed running is very smooth. High-speed torque is much higher than other two-phase drives, high positioning accuracy. Widely used in the engraving machines, CNC machine tools, packaging machinery and other high resolution requirements on the device. NEMA17, NEMA23, NEMA24 and NEMA34 stepper motors work perfectly with this HY-DIV268N-5A Stepper Driver.

Features

PWM constant current drive single-chip bipolar sinusoidal micro-step stepping motor driver

Selectable excitation mode (1/1, 1/2, 1/4, 1/8, and 1/16 step)

Single power supply

Average current control (in 8 steps from 0.2A to 5A), two-phase sinusoidal current drive output

DC 12 ~ 42V Single power supply operation

Optically isolated inputs

Black Rugged Plastic Enclosure and Large Black Aluminium Heat Sink

Mounting Holes on Heat Sink for Mounting the Drive in Machine Panels

Technical Specifications

Input voltage DC 8 ~ 50V input (Operating Voltage: 12V – 42V)

The input current of 1 to 5 amps

Output current:

IOUT= 5.0 A (absolute maximum ratings, peak, within 100ms)

IOUT= 4.5 A (operating range, maximal value)

Operating Temperature: -10 to 45 ℃

Storage temperature: -40 ℃ to 70 ℃

Pinouts

PIN # PIN NAME DESCRIPTION

1 DIR- Direction Input Cathode of Optoisolator

2 DIR+ Direction Input Anode of Optoisolator

3 PUL- Pulse Input Cathode of Optoisolator

4 PUL+ Pulse Input Anode of Optoisolator

5 EN- Enable Input Cathode of Optoisolator
