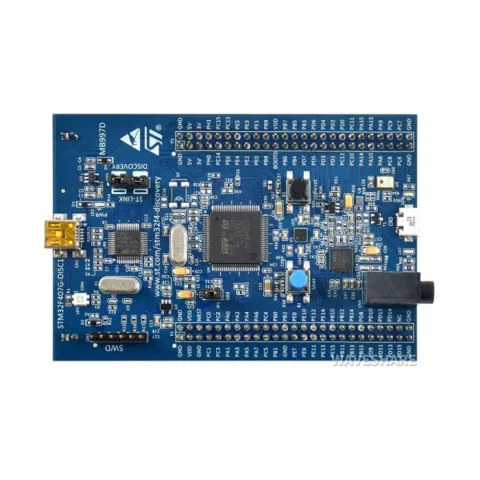

The STM32F4DISCOVERY helps you to discover the STM32F4 high-performance features and to develop your applications easily. It includes everything required for beginners and experienced users to get started quickly.

Based on the STM32F407VGT6, it includes an ST-LINK/V2-A embedded debug tool, two ST MEMS, digital accelerometer and digital microphone, one audio DAC with integrated class D speaker driver, LEDs and push buttons and an USB OTG micro-AB connector.

A large number of free ready-to-run application firmware examples are available on www.st.com/stm32f4-discovery to support quick evaluation and development.

Key Features

STM32F407VGT6 microcontroller featuring 32-bit ARM Cortex-M4F core, 1 MB Flash, 192 KB RAM in an LQFP100 package

On-board ST-LINK/V2-A

ARM® mbed™ -enabled (http://mbed.org)

USB ST-LINK with re-enumeration capability and three different interfaces:

Virtual com port

Mass storage

Debug port

Board power supply: through USB bus or from an external 5 V supply voltage

External application power supply: 3 V and 5 V

LIS302DL or LIS3DSH ST MEMS 3-axis accelerometer

MP45DT02, ST MEMS audio sensor, omni-directional digital microphone

CS43L22, audio DAC with integrated class D speaker driver

Eight LEDs:

LD1 (red/green) for USB communication

LD2 (red) for 3.3 V power on

Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)

2 USB OTG LEDs LD7 (green) VBus and LD8 (red) over-current

Two push buttons (user and reset)

USB OTG FS with micro-AB connector

Extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
