Sim7000c module bramble pie NB IOT / EMTC / edge /GNSS expansion board

WAVESHARE SIM7000C SIM7000X NB-IOT HAT 4G LTE GPRS GPS RASPBERRY PI

Waveshare SIM7000X NB-IoT HAT adalah module 4G GPRS dan GPS mengunakan chipset SIMCOM 7000C.

Modul ini mendukung koneksi 4G LTE yang tersedia di Indonesia.

Sangat cocok untuk project IOT anda, dimana module ini mendukung Raspberry Pi Zero, 2 dan 3 , serta mendukung koneksi langsung ke PC (menggunakan kabel USB dan AT Cmd) dan komunikasi ke Arduino (menggunakan jalur serial TTL yang tersedia, AT Cmd)

Fitur:

- Raspberry Pi connectivity, compatible with RPi Zero/Zero W/Zero WH/2B/3B/3B+

- Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.

- Supports GNSS positioning (GPS, GLONASS, BeiDou and Galileo)

- Onboard USB interface, to test AT Commands, get GPS positioning data, etc

- Breakout UART control pins, to connect with host boards like Arduino/STM32

- SIM card slot, compatible with both normal SIM card and NB-IoT specific card

- 2x LED indicators, easy to monitor the working status

- Baudrate: 300bps~3686400bps

- Visit Tokoduino dot com

- Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)

- Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT

- Power supply: 5V

- Size: 30.2mm x 65mm

Spec:

- SIM7000C: BAND FDD-LTE B1/B3/B5/B8, GPRS/EDGE 900/1800 MHz

- NB-IOT Data speed: Uplink max 66kbps, Downlink max 34kbps

- EMTC Data speed: Uplink max 375kbps, Downlink max 300kbps

- EDGE Data speed: Uplink max 236.8kbps, Downlink max 236.8kbps

- GSM/GPRS Data speed: Uplink max 85.6kbps, Downlink max 85.6kbps

- Emitting power NB-IOT/EMTC: Class 3 (0.25W@LTE); EDGE: Class E2 (0.5W@EGSM900), Class E1 (0.4W@DCS1800); GSM/GPRS: Class 4 (2W@GSM900), Class 1 (1W@DCS1800)

Spec GNSS (GPS):

- Receiver type: 16ch

- Tracking sensitivity: -162dBm (GPS) /-157dBm(GLONASS)/TBD (BD)

- Time-To-First-Fix: Cold starts up to 35s, Hot Start up to 1s

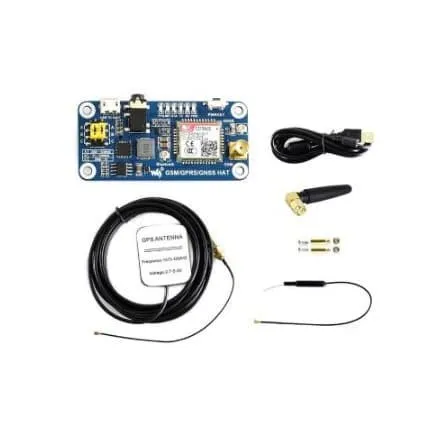

Kelengkapan:

1pcs modul SIM7000X NB-IoT HAT

1set

Sim7000c module bramble pie NB IOT / EMTC / edge /GNSS expansion board

Sim7000c module bramble pie NB IOT / EMTC / edge /GNSS expansion board

Rp 929.040
