32CH servo control board description:

- Weight: 25g

- Size: 63*45mm

- Working voltage: 5V

- CPU voltage: 3.3V

- Servo motor input voltage: 4.2-7.2V

- CPU: 32 Bits

- Baud rate (USB): 115200

- Baud rate (bluetooth, UART): 9600

- Storage Flash capacity: 16M

- Mode to choose: 4 types

- Simultineous controlling servo number: 32 channel

- Max action groups: 256 groups

- Communication agreement: UART

- PC software: support

- Single machine operation: support

- Support servo type: 9-55G(3.3-7.2V)

- Online operation support: C51, Arduino, ARM, DSP, Bluetooth, WIFI, PC

- Mode type: USB online operation, UART online operation(including bluetooth, WIFI), off-line independent operation, PS2 wireless remote control

32CH servo control board features:

- With 16M storage, can store thousands of indications, 256 groups of actions

- Servo interface has three colors pins to different from each other

- No need to programme

- Simple indication operation

- 32 bits high efficient low consumption CPU

- Cross platform operation, can support WindowsXP, WindowsVisit, Windows7, Windows8, Windows10, Linux, FreeBsd, MAC OS, Android

- Can support bluetooth, WIFI wireless control

- Adding signal isolation to protect control board

- PS2 wireless handle

- Compatible with all supporting serial port single chip

- Using Micro USB interface

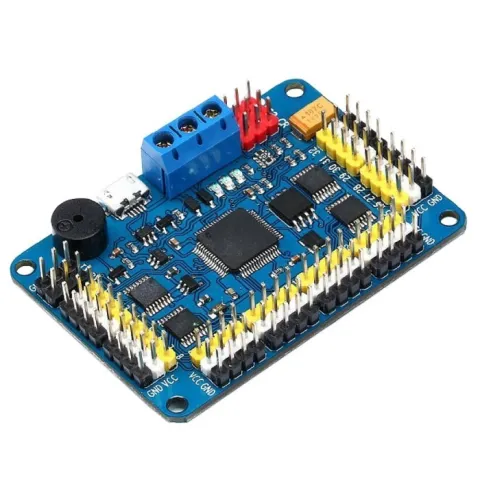

Servo controller 32 channel control board module motor driver

Rp 545.000
