Tersedia Varian NPN dan PNP

Inductive proximity sensors are used for non-contact detection of metallic objects. Their operating principle is based on a coil and oscillator that creates an electromagnetic field in the close surroundings of the sensing surface. The presence of a metallic object (actuator) in the operating area causes a dampening of the oscillation amplitude. The rise or fall of such oscillation is identified by a threshold circuit that changes the output of the sensor. The operating distance of the sensor depends on the actuator's shape and size and is strictly linked to the nature of the material:

Sensitivity when different metals are present. Sn = operating distance.

Fe37 (Iron) 1 x Sn

Stainless steel 0.9 x Sn

Brass - Bronze 0.5 x Sn

Aluminum 0.4 x Sn

Copper 0.4 x Sn

Features:

NPN NO (Normally Open)

To detect metal object

High precision of repeated location

Diversified exterior structures

Wide voltage range

With short-circuit protection and inverted connecting protection

Minimize interference by visible light

Easy to install

Specification:

Working Voltage: DC 5V

Loaded Current: 300mA

Response Frequency: 500Hz

Detect Range: 0 - 4mm

Switch Appearance Type: Cylinder Type

Theory: Induction Sensor

Output Pin: NPN 3-wires Normally Open

Working Environment Temperature: -25°C ~ + 70°C

Wire Length: 1.2meter

Protection degree: IP 65

Body Material: Alloy & Plastic

Sensor: Iron 10.5 x 10.5 x 1mm

Dimensions : 2.2 x 6cm

Net Weight: 85g

Pin-outs:

Brown - VCC (+)

Blue - Ground (-)

Black - Trigger Signal

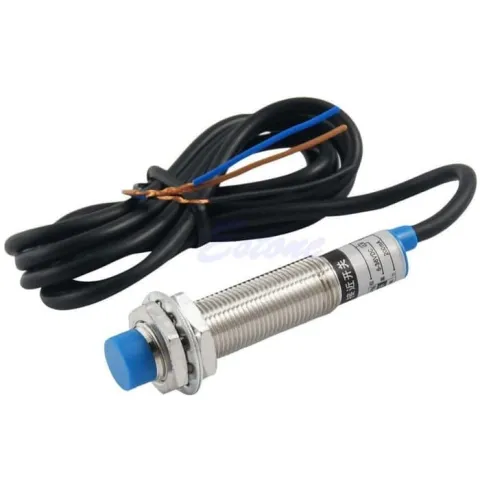

Sensor Switch LJ12A34Z BX Proximity Switch Sensor NPN Three Wire Metal

Sensor Switch LJ12A34Z BX Proximity Switch Sensor NPN Three Wire Metal

Rp 37.500
