Specification

Microcontroller: STM32F411RET6

Core: ARM Cortex M4 32-bit

Clock frequency: 100 MHz

Flash memory: 512 KB

SRAM: 128 KB

Analog-to-digital converter: 12-bit, 16-channel

Number of Timers: 10

The number of programmable inputs/outputs: 50

Interfaces: 3x I2C, 3x USART, 5x SPI, USB 2.0 Full Speed

Two types of connectors:

Connectors for shields compatible with Arduino Uno Rev3

Standard pins STMicroelectronics Morpho enabling the access to the pins of the microcontroller

The module is compatible with the system mbed (mbed.org)

The debugger ST-Link/V2 is placed on the board with the possibility to work as a standalone device with the SWD output

The possibility to power through USB connector

Embedded three LEDs:

1 x for indication of supply voltage

1 x for indicating the connection

1 x at the user's disposal

Two buttons:

1 x RESET

1 x at the user's disposal

Three different interfaces via connector miniUSB (USB re-enumeration):

Virtual COM port

Mass memory

Port for programming/debugging

The module supports most of the popular environments, i.a.: IAR, Keil and the platforms based on GCC compiler

A detailed description can be found in the documentation and on the website of the manufacturer.

STM32 NUCLEO

Nucleo allows for the implementation of projects, based on powerful microcontroller with 32-bit core ARM Cortex. The modules are compatible with Arduino shields and the compiler's system on-line mbed.org. Nukleo works with most of the popular development platforms, including Keil, IAR and environments based on the GCC compiler.

Useful links

Website of the manufacturer: STM32 Nucleo

mBed.org

Documentation of Nucleo

User manual

Getting Started with STM32

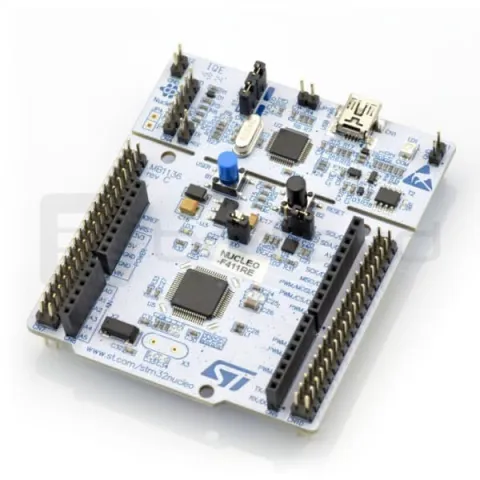

STM32 NUCLEO-F411RE module - STM32F411RE ARM Cortex M4*
