Common features

STM32 microcontroller in an LQFP64 or LQFP48 package

1 user LED shared with ARDUINO®

1 user and 1 reset push-buttons

32.768 kHz crystal oscillator

Board connectors:

ARDUINO® Uno V3 expansion connector

ST morpho extension pin headers for full access to all STM32 I/Os

Flexible power-supply options: ST-LINK USB VBUS or external sources

Comprehensive free software libraries and examples available with the STM32Cube MCU Package

Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE

Features specific to some of the boards (refer to the ordering information section of the data brief for details)

Second user LED

External or internal SMPS to generate Vcore logic supply

24 MHz or 48 MHz HSE

User USB Device full speed, or USB SNK/UFP full speed

Cryptography

CAN FD transceiver

Board connectors:

External SMPS experimentation dedicated connector

USB Type-C®, Micro-B, or Mini-B connector for the ST-LINK

USB Type-C® user connector

MIPI® debug connector

CAN FD header

On-board ST-LINK (STLINK/V2-1, STLINK-V3E, STLINK-V2EC, or STLINK-V3EC) debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port

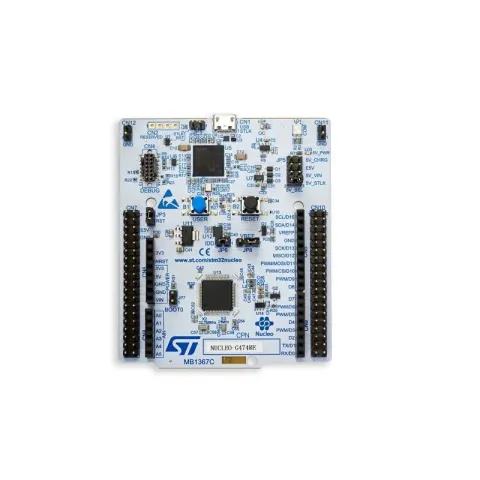

STM32 NUCLEO - G474RE NUCLEO-64 STM32G474RE

STM32 NUCLEO - G474RE NUCLEO-64 STM32G474RE

Rp 717.360

Deskripsi
