General features :

* Quad-Band 850/ 900/ 1800/ 1900 MHz

* GPRS multi-slot class 10/8

* GPRS mobile station class B

* Compliant to GSM phase 2/2+

Class 4 (2 W @850/ 900 MHz)

Class 1 (1 W @ 1800/1900MHz)

* Dimensions: 33*33*3mm

* Weight: 6.2g

* Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)

* SIM application toolkit

* Supply voltage range : 3.2 ... 4.8V

* Low power consumption: 1.0mA(sleep mode)

* Operation temperature: -40 C to +85C

Specifications for Fax

* Group 3, class 1

Specifications for Data

* GPRS class 10: max. 85.6 kbps (downlink)

* PBCCH support

* Coding schemes CS 1, 2, 3, 4

* USSD

* Non transparent mode

* PPP-stack

Software features

* 0710 MUX protocol

* embedded TCP/UDP protocol

* FTP/HTTP

Special firmware * FOTA

* MMS

* Embedded AT

Specifications for Voice

* Tricodec

Half rate (HR)

Full rate (FR)

Enhanced Full rate (EFR)

Hands-free operation

(Echo suppression)

AMR

Half rate (HR)

Full rate (FR)

Interfaces

* Interface to external SIM 3V/ 1.8V

* analog audio interface

* RTC backup

* SPI interface (option)

* Serial interface

* Embedded SIM (option )

* Antenna pad

* GPIO

* ADC

* Charge interface for Li battery

* PWM

Compatibility

* AT cellular command interface

Certificates:

* ROHS

* REACH

* CE

Carrier Approvals

* Orange

Specifications for SMS via GSM/GPRS

* Point-to-point MO and MT

* SMS cell broadcast

* Text and PDU mode

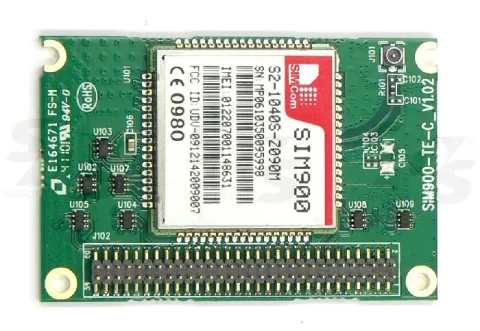

SIM900 GSM MODULE

SIM900 GSM MODULE

Rp 205.800

Deskripsi
