INTRODUCTION

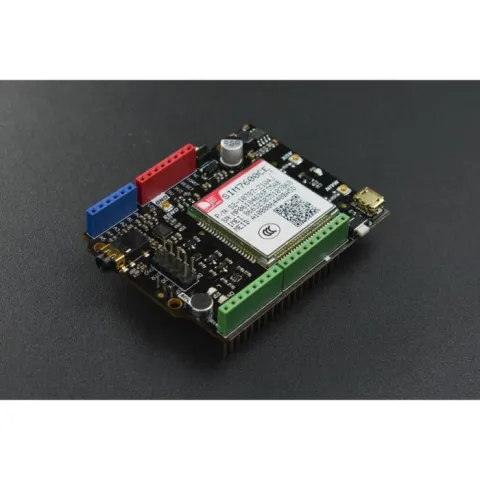

SIM7600CE-T 4G(LTE) Shield is a 4G/3G/2G communication and GNSS positioning module.

This shield is as small as a credit card and compatible with controller boards like Arduino UNO, arduino Leonardo, arduino Mega etc. The frequency bands that SIM7600CE-T 4G(LTE) Shield supports are LTE-TDD/ LTE-FDD/HSPA+/TD-SCDMA/EVDO and GSM/GPRS/EDGE. It also supports LTE-CAT4(with uplink rate 50 Mbps and downlink rate 150 Mbps). With stable performance, this small cost-effective expansion shield can realize SMS and data transmission in a pretty low power consumption. Besides, it adopts the latest SIM7600CE module. Compared with other GSM/GPRS/GPS modules on the market, this module is well advanced in stable performance and powerful function such as 4G communication and accurate GNSS positioning.

FEATURES

Support Multi-frequency Communication

GNSS Positioning

Standard Arduino Interface

SPECIFICATION

USB Voltage: 5V

Operating Voltage: 5V

Input Voltage: VIN(7-23V)/USB(5V)

Support Network:

TDD-LTE B38/B39/B40/B41

FDD-LTE B1/B3/B8

TD-SCDMA B34/B39

WCDMA/HSDPA/HSPA+ B1/B8

CDMA 1X/EVDO BC0

GSM/GPRS/EDGE 900/1800 MHz

4G Communication Rate: uplink rate 50 Mbps, downlink rate 150 Mbps

Support AT Command Control:

3GPP TS 27.007,27.005 and SIM7500_SIM7600 Series_AT Command

Support GNSS Positioning

Support Low Power Consumption: 20mA@7V-Flight Mode

Support LED Status Display: display the power supply status, network connection and operating mode

Operating Temperature: -40℃ ~85℃

Size: 69*54mm/2.72*2.13inch

DOCUMENTS

Product wiki

SHIPPING LIST

SIM7600CE-T 4G(LTE) Shield(V1.0) x1

GPS Antenna x1

4G LTF Antenna x1
