GPRS Features:

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

Supports TCP, UDP, PPP, HTTP, FTP, MQTT, SMS, Mail, etc.

Supports GNSS positioning (GPS, BeiDou, GLONASS)

Onboard USB interface, to test AT Commands, get GPS positioning data, and so on

Breakout UART control pins, to connect with host boards like Arduino/STM32

Onboard voltage translator, 3.3V by default, allows to be switched to 5V via 0Ω resistor

SIM card slot, compatible with both normal SIM card and NB-IoT specific card

2x LED indicators, easy to monitor the working status

Baudrate: 300bps~3686400bps (115200bps by default)

Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)

Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 98, USAT

Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

GPRS Specifications:

NB-IOT / CAT-M / 2G

Frequency bands

NB-IoT: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28

Cat-M: B1, B2, B3, B4, B5, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B39

GPRS/EDGE: 850, 900, 1800, 1900MHz

Data rate

NB-IoT: 34(DL)/66(UL)

Cat-M: 300(DL)/375(UL)

EDGE: 236.8(DL)/236.8(UL)

GPRS: 85.6(DL)/85.6(UL)

SIM card support

NB-IoT: NB Specific (Not Included)

Cat-M/GPRS/EDGE: Normal SIM (Not Included)

Applicable region

Global

GNSS

Satellite systems

GPS, BeiDou, GLONASS

Receiver type

16-channel

C/A Code

Sensitivity

Tracking: -162 dBm (GPS) / -157 dBm (GLONASS) / TBD (BD)

Cold starts: -148 dBm

Time-To-First-Fix

Cold starts: <35s

Hot starts: <1s

Accuracy

Position: <2.5m CEP

OTHER

Power supply

Operating voltage

5V / 3.3V (3.3V by default)

Sleep Mode current

1.2mA (@DRX=2.56s)

Power Save Mode current

9uA

Operating temperature

-40°C ~ 85°C

Storage temperature

-45°C ~ 90°C

Dimensions

30.2mm x 65mm

Package Included :

1 X SIM7000G NB-IoT / Cat-M / EDGE / GPRS HAT

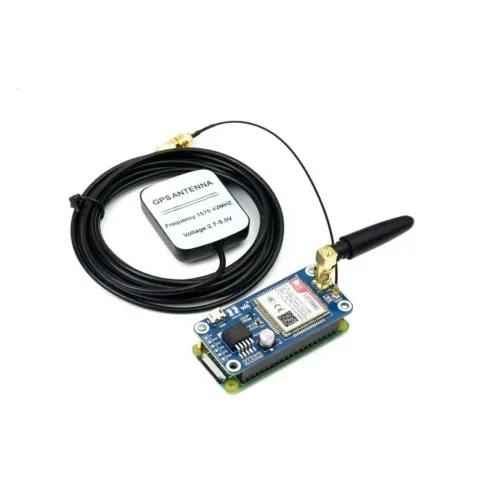

SIM7000G NB-IoT / Cat-M / EDGE / GPRS HAT for Raspberry Pi, GNSS, Global Band Support
