What is an electronic brick? An electronic brick is an electronic module which can be assembled like Lego bricks simply by plugging in and pulling out. Compared to traditional universal boards and circuit modules assembled with various electronic components, electronic brick has standardized interfaces, plug and play, simplifying construction of prototype circuit on ones own. There are many types of electronic bricks, and we provide more than twenty types with different functions including buttons, sensors, Bluetooth modules, etc, whose functions cover from sensor to motor drive, from Ethernet to wireless communication via Bluetooth, and so on. We will continue to add more types to meet the various needs of different projects.

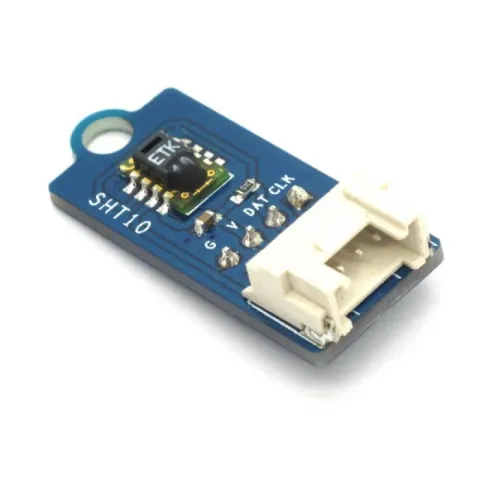

SHT10 is a digital relative temperature sensor with two-wire interface, ultra-small size wide voltage range wide measurable temperature range and high resolution, which can be used in temperature control, industrial systems, consumer products, thermometers and thermal sensing systems.

Specifications

PCB size� 33mm X 14mm X 1.6mm

Working voltage� 3.3 or 5V

Compatible interface �IIC

�

Electrical characteristics

Parameter �Min.� Typical� Max.� Unit

Power voltage �2.4 �3.3 �5 �VDC

Working current（VCC=3.3V） �-� 0.55 1 �mA

SCK frequency（VDD>4.5V)� 0� 0.1 �5� MHz

SCK frequency（VDD<4.5V) 0� 0.1 �1� MHz

Temperature resolution� 0.04 �0.01� 0.01 �℃

12 14� 14� bit

Temperature accuracy� -� �5� -� ℃

Temperature range �-40� � 123.8� ℃

Humidity resolution� 0.4� 0.05� 0.05� %RH

12� 14� 14� bit

Humidity accuracy �-� �4.5� -� %RH

Humidity range� 0� � 100� %RH

Hardware

pinmap

Pin Pin name� Communication� �Description

1 G - Ground

2 V - Supply voltage

3 DAT - Data pin of the serial port

4 CLK
