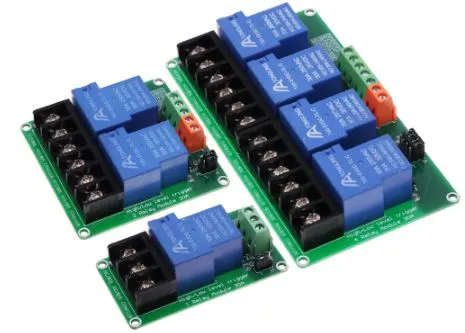

Relay module untuk Arduino atau microconteoller lain.

Versi High Power dengan kontak Relay maksimal Load 30 Ampere

VARIAN:

1CHANNEL

2CHANNEL

4CHANNEL

Tegangan kerja : 5V 12v 24v

Kontak Beban : Max 250v/30A

Arus kerja : 2ch : -+40mA

Dimensi = 72,70,22mm

Trigger bisa disetting Low level (0) atau High Level (1)

High Quality 1 2 4-Way 30A High and Low Level Trigger Relay Module 5V 12V 24V Smart Home Automation Control

Features:

1. Using double-sided PCB board, the whole module layout is reasonable and beautiful

2. Use high-power relay to control the load, up to 30A

3. Each channel is equipped with optocoupler isolation, strong anti-interference ability

4. Black 9500 terminal, more convenient, high current wiring

5. Each channel has a relay switch LED indication, the on and off is clearly visible

6. There are isolation slots between the control area and the load area

7. Product application: PLC automation equipment control, industrial system control, Internet of Things control, home intelligent control, electronic hobbyist development experiments, various circuit modifications, etc.

Specification:

Quiescent current: 5mA

Maximum operating current: 80mA

Trigger mode: low trigger, high trigger

Load voltage: DC 30V or AC 250V

Load current: 30A

Relay life: more than 100,000 times

Product weight: about 200G

Trigger voltage range :

5V low trigger Mode : 0-2VDC relay on (ON), 3-5VDC relay off (OFF)

5V high trigger Mode : 3.3-5VDC relay (ON), 0-2.5VDC relay off (OFF)

Compability :

*5V : Arduino , Atmega, Mikrocontroller GPIO 5V, Module sensor 5V,dll.

*3V : Arduino (3,3v), ESP8266, ESP32, STM32, Raspberry, Mikrokontroller 3,3v dll.

Relay module 30A 5v 12v 24v 1ch 2ch 4ch 30A Input High dan Low Active Trigger

Relay module 30A 5v 12v 24v 1ch 2ch 4ch 30A Input High dan Low Active Trigger
