FEATURES

Raspberry Pi Fifth Flagship Development Computer: Feature a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, using silicon built in-house at Raspberry Pi, offering a step change in peripheral performance and functionality
Significant Graphics Capability: Equip an 800MHz VideoCore VII GPU and deliver better graphics performance, suitable for multimedia applications, gaming, and graphics-intensive tasks
State-of-the-Art Camera Support: Built with the dedicated dual 4-lane 1Gbps MIPI DSI/CSI connectors, tripling total bandwidth, and supporting any combination of up to two cameras or displays
Versatile Connectivities: Offer Gigabit Ethernet and a PCIe interface, along with dual-band Wi-Fi and Bluetooth 5.0/BLE wireless capability
Enhanced Peripherals: Provide 1x UART connector, 1x microSD card slot supporting high-speed, 2x USB.0 3.0 supporting sync 5Gbps operation, 2x USB2.0 ports ports, 1x RTC, 2x 4Kp60 display output with HDR support

APPLICATIONS

SPECIFICATION

CPU: 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches, and a 2MB shared L3 cache
GPU: VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
Display Output: Dual 4Kp60 HDMI® display output with HDR support
Video Decoder: 4Kp60 HEVC decoder
RAM: 4GB LPDDR4X-4267 SDRAM
Wi-Fi: Dual-band 802.11ac Wi-Fi®
Bluetooth: Bluetooth 5.0/ Bluetooth Low Energy (BLE)
Storage: microSD card slot, with support for high-speed SDR104 mode
Power Button: On/Off included
USB Ports:
2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
2 × USB 2.0 ports
Ethernet: Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
Camera/Display: 2 × 4-lane MIPI camera/display transceivers
PCIe Interface: PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
Power: 5V/5A DC power via USB-C, with Power Delivery support
Raspberry Pi Header: Raspberry Pi standard 40-pin header
Real-time Clock (RTC): Powered from external battery

SHIPPING LIST

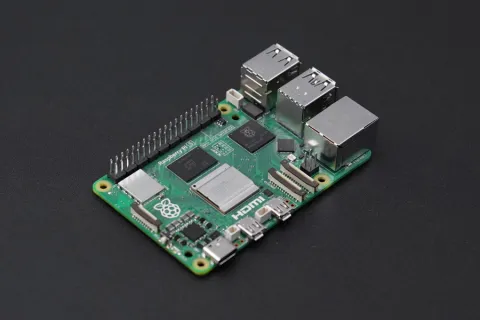

Raspberry Pi 5 Single Board Computer 1GB 2GB 4GB 8GB

Rp 1.176.000
