Function Protection: Data Protector Device
Insert Loss: 0.3dB
Response Time: Less than 0.5ns
Working Temperature: -60 degree - +190 degree
Max Discharge Current: 10KA
Work Voltage: 5V
Limited voltage: 8.8V
Installation and maintenance:
In means the input end while out means the output end; the input end is connected with the transmission line while output end is connected with the equipment.
A protection device is connected at the equipment end of signal output source and input end of protected equipment in a serial manner.
The earthing guide wire is connected with the earthing busbar or -proof system reliably.
Special maintenance is not needed for the protection device; please replace immediately in case of damage by high voltage or .
Colour:Photo Color
Material:plastic

Package Contents:
1 x Device Thunder Preventer

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

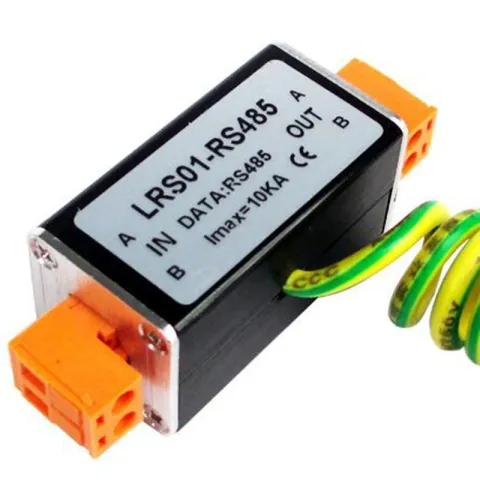

RS485 Date Signal Power Arrester Anti Surge Protector Anti Petir

RS485 Date Signal Power Arrester Anti Surge Protector Anti Petir

Rp 94.080
