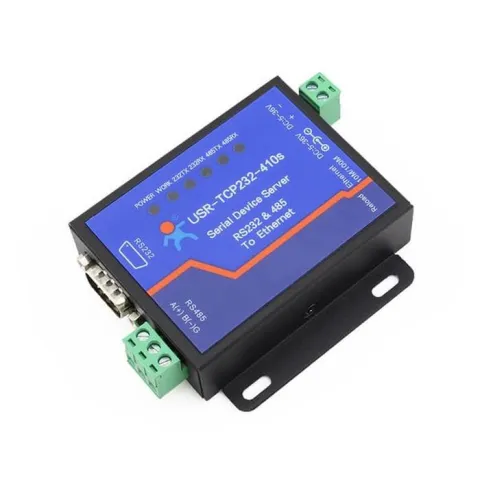

The converter is a dual serial RS232 RS485 Ethernet converter, which is based on TI Cortex-M4 solution & integrated TCP/IP protocol stack.

Advanced Function of RS232 RS485 Ethernet Converter

Industrial Solution: TI Cortex M4 Solution, -40~85C

Web Server: Web socket/ Web to Serial

Modbus Gateway: Modbus RTU to Modbus TCP / Modbus Pollinig

Flow Control: CTS/RTS, XON/XOFF

2 Network links, each serial supports sending data to two target servers

Network Printing

N series supports hardware watchdog, never crash

Basic Feature of RS232 RS485 Ethernet Converter

Multiple indicator lights for convenient debugging

Power-line terminal for industrial application

ARM kernel and TCP/IP protocol stack

Auto-MDI/MDIX,RJ45 port with 10/100Mbps

TCP Server,TCP Client,UDP,UDP Server and HTTPD Client work mode

Two ports can work independently at the same time

Support virtual serial port and provide corresponding software USR-VCOM

Serial baud rate from 600bps to 230.4K bps;Check bit of None,Odd,Even,Mark and Space

DNS and DHCP supported

Provide PC TCP/IP SOCKET programming example,VB,C++,Delphi,Android,IOS

Built-in webpage;also can customize webpage for users

Reload button,one key to restore default settings

RJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolation

The global unique MAC address bought from IEEE,user can define MAC address

Upgrade firmware via network

Keepalive,rapidly detect dead links

Support account and password,can be used to page login and network settings

Support one channel Websocket,realize bidirectional transparent transmisison bewteen webpage and serial 0

Support UDP broadcast function,send and receive data from all ip in the network

RS232 RS485 to TCP IP Serial Ethernet to Modbus gateway Converter KA92

Rp 717.360
