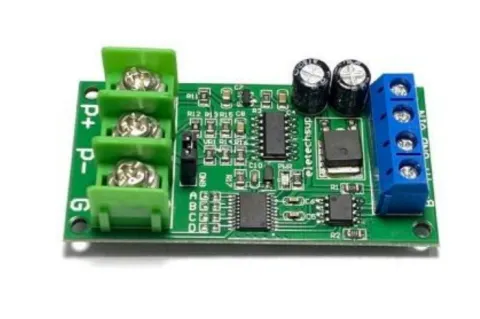

PT100 RTD Converter RS485 Modbus RTU Temperature Sensor DC 12V Module

Penuhi kebutuhan komponenmu di toko ini

Happy Shopping!!

Working voltage: DC 8-25V(Recommend DC 12V)

Working current: 8-13MA

MODBUS RTU protocol, 03 read command, 06 write command.

Serial port baud rate: 9600 (default), N, 8, 1

By modifying the 485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)

Can read temperature and PT100 resistance value

Adapted sensor: PT100 3-wire or 2-wire sensor

Temperature measurement range: A version -20℃ to +400℃; B version -20℃ to +220℃. It is recommended to select a version with a smaller range within the range that meets the measurement.

PT100 sensor specifications:

Type: PT100

Probe Diameter: 6.5mm

Probe Length: 30mm

Probe Material : Stainless steel

Cable Length: 0.5M

PTFE sheath 3-Wire type

Temperature -200~550°C degree

Temperature measurement accuracy: 1%.

Size: 60 X 30 X 16MM

Weight: 16g

MODBUS RTU protocol please refer to : '' PTA9B01 PT100 RS485 sensor protocol ''

Note:

-Tutorial dan penjelasan lebih lanjut dapat dilihat di datasheet atau opensource elektronika yang tersedia di internet

-TIDAK ADA GARANSI SUPPLIER MAUPUN TOKO

PT100 RTD Converter RS485 Modbus RTU Temperature Sensor DC 12V Module

PT100 RTD Converter RS485 Modbus RTU Temperature Sensor DC 12V Module

Rp 147.000
