There is a knob on the back of the controller for setting the delay time. When a person is detected, the load light will be turned on. When the person has left for the set delay time, the load light will automatically go out.

Note: Connect the load line first, then the power wire, and make sure that there is no short circuit between the connecting lines before powering on.

FEATURES

Detection range of 5~8m

High sensitivity and reliability.

Adjustable delay function

APPLICATIONS

Automatic induction electrical equipment

Large bookcases

Corridor lighting

Light strip control

Security products

Industrial automation control

SPECIFICATION

Working Temperature: -20℃~60℃

Power Supply Voltage: 3-32V

Output Voltage: 3-32V

Sensing Distance: 5～8m

Sensing Angle: 60 degrees

Static Power Consumption: <1W

Output Current: <6A

Delay Time: 1-10min

Output Power: 12V: <72W, 24V: <144 W

Dimensions: L76*W45*H35 mm / 2.99*1.77*1.38 inch

Packing Size: L104*W64*H41 mm / 4.09*2.52*1.61 inch

Weight: 50g

SHIPPING LIST

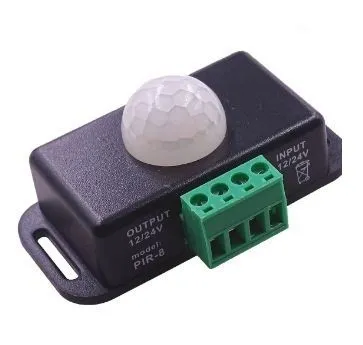

DC 12V/24V Infrared Body Sensor Switch x1
