INTRODUCTION

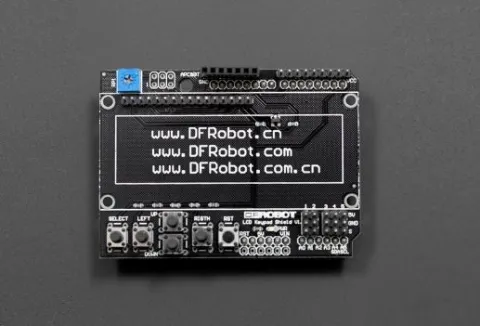

This is the back panel pcb of 1602 Arduino LCD Shield. This shield allows you to place your own LCD onto this shield. It only requieres a 16x2 HD44780 compatible LCD. This Shield uses Arudino LCD4Bit library.

The pcb is compatible with the following LCD:

- Basic 16x2 Character LCD - Black on Yellow 5V

- Basic 16x2 Character LCD - White on Blue 5V

APPLICATIONS

This is a great shield if you have an extra LCD laying arround or want to move your current LCD from breadboard and wires to a more stable solution.

SPECIFICATION

- Requieres the use of an 16x2 LCD

- Operating Voltage:5V

- Integrate a potentiometer for adjusting the backlight

- Has 5 programmable buttons and 1 reset button

- Expanded available I/O pins

- Expanded Analog Pinout with standard DFRobot configuration for fast sensor extension

- Pin used:

* D4-D7 -> LCD Data transmission

* D8 -> Reset pin

* D9 -> Enable pin

- APC&BT pin header for connecting wireless devices, directly compatible with:

- APC220 Radio Communication Module

- DFRobot Bluetooth V3

- Dimension: 80 x 58 mm(3.15x2.28")

Not Compatible with: 20 Pin LCD's

SHIPPING LIST

- LCD Back Panel x1
