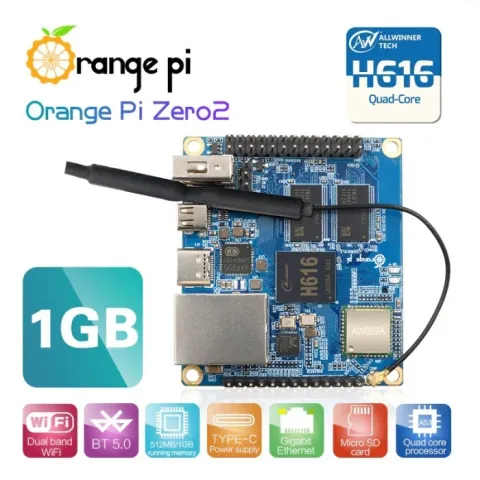

ORANGE PI ZERO 2, VERSI 1GB

SUPPORTED OS (Operating System):

- Debian

- Android

- Ubuntu

SPECIFICATION

CPU : Allwinner H616 64-bit high-performance Quad-core Cortex-A53 processor

GPU : Mali G31 MP2, Supports OpenGL ES 1.0/2.0/3.2OpenCL 2.0

Video decoding :

--- H.265 Main10@L5.1 decoder up to 4K@60fps or 6K@30fps

--- VP9 Profile 2 decoder up to 4K@60fps

--- AVS2 JiZhun 10bit decoder up to 4K@60fps

--- H.264 BP/MP/HP@L4.2 decoder up to 4K@30fps

Video encoding :

--- H.264 BP/MP/HP encoder up to 4K@25fps or 1080p@60fps

--- JPEG snapshot performance of 1080p@60fps

Memory(SDRAM) : 512MB/1GB DDR3 (Shared with GPU

Onboard Storage :

--- TF card slot

--- 2MB SPI Flash

Onboard Network : Support 1000M/100M/10M Ethernet

Onboard WIFI+BT :

--- AW859A Chip

--- Support IEEE 802.11 a/b/g/n/ac

--- Support BT5.0

Video Outputs :

--- Micro HDMI 2.0a up to 4K@60fps

--- TV CVBS output, Support PAL/NTSCVia 13pin interface board

Audio output :

--- Micro HDMI

--- 3.5mm audio port (Via 13pin interface board)

Power Source : Type-C interface 5V2A input

USB 2.0 Ports : 3*USB 2.0 HOSTTwo of them are via 13pin interface board

Low-level peripherals :

--- 26pin header with I2C, SPI, UART and multiple GPIO ports

--- 13pin header with 2*USB Host, IR pin, Tv-outAUDIO (no MIC) and 3 GPIO ports

Debug serial port : UART-TXUART-RX and GND

LED : Power led & Status led

IR receiver : Support IR remote control (via 13pin interface board)

Orange Pi Zero 2,1GB RAM dengan Allwinner H616 Chip

Rp 652.680
