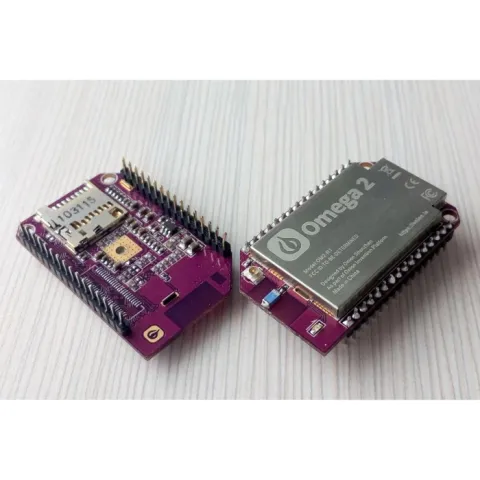

The Omega2 IoT computer is Onion’s Linux-based, WiFi development board designed to enable makers of all skill levels to build connected hardware applications. Plug in your Omega and it will boot the operating system right away, allowing you to develop in your favorite programming language, create web applications, and interface with a variety of hardware with minimal time and effort spent getting started.

Hardware

At the Omega2’s core is the MT7688 SoC that features a 580 MHz MIPS CPU, supports 2.4 GHz IEEE 802.11 b/g/n WiFi as well as 10M/100M wired ethernet network connectivity, and operates at 3.3V. The Omega2 comes with 64MB of DDR2 DRAM memory and 16MB of on-board flash storage.

The Omega was built to interact with other hardware, so it has a wide variety of hardware interfaces. It has dedicated pins for USB2.0 and Ethernet as well as 12 GPIO pins that can be controlled by the user. These GPIOs can support the I2C, UART, and SPI serial communication protocols.

The best part is that it’s tiny, measuring 1.7″ by 1″ it takes up minimal space in the project.

Software

The Omega2 runs an Onion-customized version of the LEDE (Linux Embedded Development Environment) Linux operating system, a distribution based on OpenWRT. Since there is a full Linux OS running on the Omega, users are not limited in their choice of programming language. Supported programming languages include:

C++

Python

NodeJS

Rust

Ruby

PHP

Perl

GoLang

Shell

The Omega’s OS comes equipped as a web server by default, so that other devices on the local network can interact with the Omega through a browser.

IoT Computer

So what makes the Omega2 an IoT Computer? It’s a combination of the following:

Small form factor

Power efficiency

Processing, networking, and encryption capabilities

Flexibility that comes from running a Linux OS

Support for many programming languages and many simultaneous processes

ONION OMEGA 2 IoT COMPUTER

ONION OMEGA 2 IoT COMPUTER

Rp 488.040

Deskripsi
