HARAP DI PERHATIKAN..

NODE MCU BASE HANYA COCOK UNTUK NODE MCU YG PAKAI CH340, TIDAK COCOK UNTUK CP2102

Ada beberapa Varian, Silahkan pilih Varian

1. Node MCU Base

2. Node MCU CH340

3. Node MCU CP2102

This is the famous NodeMCU which is based on ESP8266 WiFi SoC. This is version 3 and it is based on ESP-12E (An ESP8266 based WiFi module). NodeMCU is also an open-source firmware and development kit that helps you to prototype your IoT(Internet of Things) product within a few LUA script lines, and of course you can always program it with Arduino IDE.

Note: In case you are looking for alternative NodeMCU compatible boards, here are some others:

NodeMCU V2 Doit ESP12E (Narrow) - Narrow width, perfect for breadboard

Wemos D1 Mini ESP8266 Dev Board - More compact

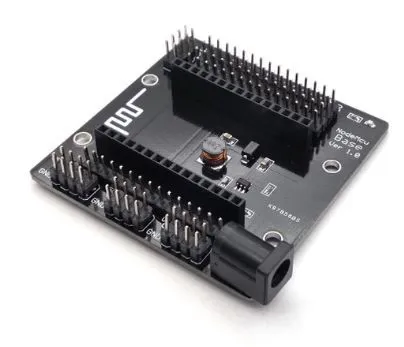

As the width of this NodeMCU is 30mm, covering the entire holes on breadboard, so we do recommend getting the Base board for it to ease the protoyping. The base board comes with many extended header pins for the GPIO and also power line.

Features

Open-source

Interactive

Programmable

Low cost

Simple

Smart

WiFi enabled

Arduino-like hardware IO

Advanced API for hardware IO, which can dramatically reduce the redundant work for configuring and manipulating hardware

Code like Arduino, but interactively in Lua script

Nodejs style network API

Event-driven API for network applicaitons, which faciliates developers writing code running on a 5mm*5mm sized MCU in Nodejs style

Greatly speed up your IoT application developing process

Lowest cost WiFi

Less than $2 WiFi MCU ESP8266 integrated and esay to prototyping development kit

We provide the best platform for IoT application development at the lowest cost

Input Voltage:

3.3V via 3.3V pin

5.0V via Vin or USB

Specifications:

The Development Kit based on ESP8266, integates GPIO, PWM, IIC, 1-Wire and ADC all in one board.

NodeMCU (ESP8266 WiFi Programming & Development Kit)

NodeMCU (ESP8266 WiFi Programming & Development Kit)

Rp 15.000

Rp 45.000
