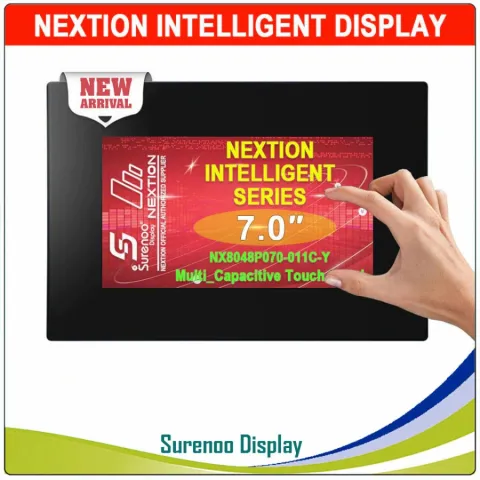

Nextion Intelligent Series NX8048P070-011C-Y/NX8048P070-011R-Y 7 Inch 65K

Type in sudah dilengkapi Box Kesing monitor

Tersedia 2 Varian Layar sentuh

-Capasitive Touchscreen (NX8048P070-011C-Y)

-Resistive Touchscreen (NX8048P070-011R-Y)

Pilih pada menu varian sesuai kebutuhan anda.

Intelligent Series adalah seri tertinggi dari Nextion HMI LCD, diatas Seri Enhanced dan Basic.

Intelligent Series sudah mendukung Video dan Audio player dalam sistem interface nya.

Hardware Features

- NX8048P070-011C-Y(7.0'' IPS RGB 65K capacitive touchscreen)

-NX8048P070-011R-Y(7.0'' IPS RGB 65K Resistive touchscreen)

Color : 65K 65536 colors 16 bit 565, 5R-6G-5B

Board size : 218.1mmx150mmx22.5mm ->detail lihat gambar No.5

Active Area (A.A.) : 64.90mm(L)×100.00mm(W)

Visual Area (V.A.) : 154.08mm(L)×85.92mm(W)

Resolution : 800×480 pixel

Touch type : Capacitive/Resitive sesuai varian

Backlight : LED

BL lifetime : -+>30,000 Hours

Brightness : 300nit

Weight 310g

Electronic Characteristics

Operating Voltage : 5V (4.75-6.5v limit)

Operating Current : 430mA (on 5v with 100% brighnest)

SLEEP Mode : 170mA

Power supply recommend：5V DC , minimal 1A

Interfaces Performance

Serial Port Baudrate : 2400/9600/921600 bps

Output High Voltage (TXD) : IOH=1mA 3.0/5.0V

Output Low Voltage(TXD) : IOL=-1mA 0.1/0.2V

Input High Voltage(RXD) : 3.0/5.0V

Input Low Voltage(RXD) :-0.7/0.0/1.3V

Serial Port Mode : 3.3V/5.0V TTL

Serial Port : 4Pin_2.54mm

USB interface : NO

SD card socket : Yes (FAT32 format), support maximum 32G Micro SD Card

* microSD card socket is exclusively used to upgrade Nextion firmware /HMI design

Extended IO : 8 Digital extended GPIO

IO0-IO7 support input, output and component binding event

IO6-IO7 support PWM

RTC : built-in RTC support (Battery type: CR1220)

FLASH Memory : 120MB

EEPROM : 1024BYTE

RAM Memory : 512KB

Instruction Buffer : 4096BYTE

Audio

Power : 16Ω 0.5W

Size Φ40*5.2Hmm

In The Box

- NX8048P070 HMI Display with Box*1

- XH2.54 4P Wire*1

- Power Supply Test Board*1
