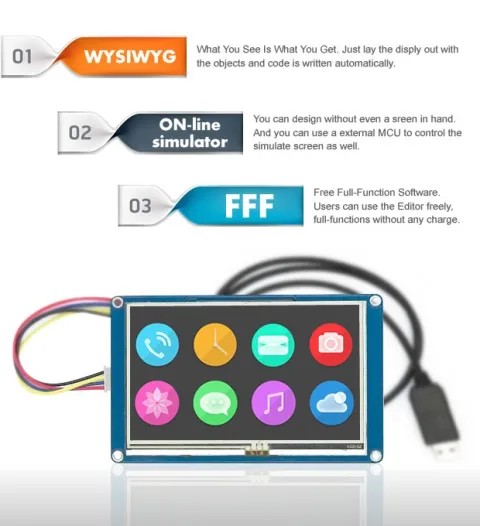

Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance. Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

This solution includes hardware part - a series of TFT boards and software part - Nextion editor. Nextion TFT board uses only one serial port to do communicating. Let you get rid of the wiring trouble. We notice that most engineers spend much time in application development but get unpleasant results. In this situation, Nextion editor has mass components such as button, text, progress bar, slider, instrument panel etc. to enrich your interface design. And the drag-and-drop function ensures that you spend less time in programming, which will reduce your 99% development workloads. With the help of this WYSIWYG editor, GUI designing is a piece of

It's easy to adapt Nextion family HMI to existing projects, you just need to provide it a UART.

NX2432T024 is a powerful 2.4'' HMI, which is member of Nextion family. Features include: a 2.4" TFT 320 x 240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.

Nextion NX3224T024:

320 x 240 Resolution

RGB 65K true to life colours

TFT Screen with integrated 4-wire Resistive Touch Panel

Easy 4 pin interface to any TTL Serial Host

4M Flash memory for User Application Code and Data

On board micro-SD card for firmware upgrade

Visual Area:36.72mm(L)×48.96mm(W)

Adjustable Brightness:0~180 nit, the interval of adjustment is 1%

Recommended power supply: 5V 500mA DC

Package Included:

1 X nextion 2.4 display

1 X 4P Cable

1 X UB to 2pin connector

Nextion 2.4inch Display Screen Module NX3224T024 Raspberry PI

Nextion 2.4inch Display Screen Module NX3224T024 Raspberry PI

Rp 499.800
