N4DAC02 DC 12V 2CH DAC PWM Module RS485 Voltage Analog Converter Modbus RTU Board 2-Channel Voltage Signal Generator.

Product selling points:

1: Widely used

2: Easy to use and understand,

3: The green board is more eye-catching

4: Voltage resolution 0.01V, output accuracy 1%; if the error is greater than 1%, it can be calibrated

5: In MODBUS command mode, up to 247 devices can be connected in parallel

describe:

1: Working voltage: DC 12 (DC 12-25V), a small ripple power supply is recommended

2: Working current: 12-13MA

3: MODBUS RTU command support 03 06 function code

4: CH1 (O1) output voltage 0-5V, maximum output current 20MA. 1-5V accuracy is 1%, <1V has 50HZ/40MV ripple.

The output voltage of CH2 (O2) is 0-10V, and the maximum output current is 20MA. 2-10V accuracy is 1%, <2V has 50HZ/80MV ripple.

5: Voltage resolution 0.01V, output accuracy 1%; if the error is greater than 1%, you can calibrate

6: MODBUS commands can be made into serial port super terminal (serial port assistant) or PLC input;

7: In MODBUS command mode, up to 247 devices can be connected in parallel

8: Size: 45*35*15mm

9: Weight: 19g

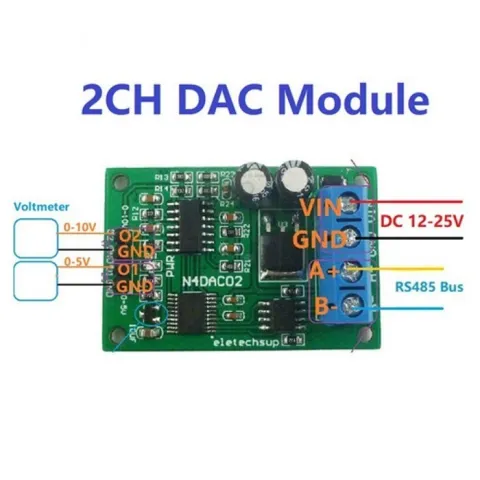

This is a low-cost digital-to-analog conversion module based on the PWM+ADC solution.

Channel 1 (O1) has 1% accuracy at 1-5V, <1V has 50HZ/40MV ripple, Channel 2 (O2) has 1% accuracy at 2-10V, and <2V has 50HZ/80MV ripple.

The minimum output voltage of channel 1 (O1) is 0.05V, and the minimum output voltage of channel 2 (O2) is 0.1V

3 There is a 10-20MS high pulse at the moment of power-on

application

4-20MA/0-20MA sensor

Current and voltage signal transmission

Automation Industrial PLC

Smart home, home automation;

recognition system;

RS485 remote monitoring;

Multimeter voltmeter

Checklist

1* N4DAC02 12-25V 2 channel PWM DAC RS485 module
