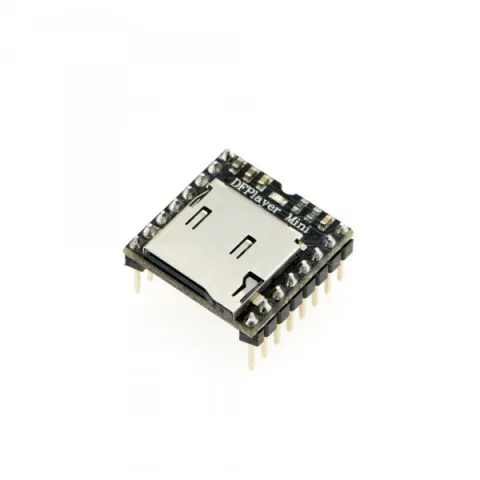

The DFPlayer Mini is a small and low cost MP3 module with an simplified output directly to the speaker. The module can be used as a stand alone module with attached battery, speaker and push buttons or used in combination with an Arduino UNO or any other with RX/TX capabilities.

Specification:

- supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48

- 24 -bit DAC output, support for dynamic range 90dB , SNR support 85dB

- fully supports FAT16 , FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NORFLASH

- a variety of control modes, I/O control mode, serial mode, AD button control mode

- advertising sound waiting function, the music can be suspended. when advertising is over in the music continue to play

- audio data sorted by folder, supports up to 100 folders, every folder can hold up to 255 songs

- 30 level adjustable volume, 6 -level EQ adjustable

Application:

- Car navigation voice broadcast;

- Road transport inspectors, toll stations voice prompts;

- Railway station, bus safety inspection voice prompts;

- Electricity, communications, financial business hall voice prompts;

- Vehicle into and out of the channel verify that the voice prompts;

- The public security border control channel voice prompts;

- Multi-channel voice alarm or equipment operating guide voice;

- The electric tourist car safe driving voice notices;

- Electromechanical equipment failure alarm;

- Fire alarm voice prompts;

- The automatic broadcast equipment, regular broadcast.

Kelengkapan: DFPlayer Mini (1 unit)

http://www.dfrobot.com/wiki/index.php/DFPlayer_Mini_SKU:DFR0299

http://www.dfrobot.com/image/data/DFR0299/DFPlayer%20Mini%20Manul.pdf

Mini MP3 Player Module Compatible with Arduino

Mini MP3 Player Module Compatible with Arduino

Rp 16.500
