30A stepper motor drive

Description: This is a specially designed for high-powered motor drive module, powerful performance module so that it only requires a pair of VNH2SP30 can replace the L298 H -bridge provide full-bridge motor driver, and we strengthened the load capacity of the circuit so that it can drive one pair of high-current motor! Module inputs and motor interface end have adopted 5mm interface terminals, making it easy to connect large size of the wires. When you need to use ultra-high current case, the wires can be soldered directly to the module instead of the terminal connection cable (as the case may be). When the drive current is greater than 6A will heat the chip, in order to improve performance, the best then a heat sink or cooling fan.

Module features:

Maximum input voltage: 16V

Peak drive current: 30A

Sustainable starting current: 14A

Maximum PMW frequency: 20 kHz

The output impedance of only 19mO

Current can be arduino analog input pin detecting

With over-temperature protection, overvoltage and undervoltage protection

Tutorial:

http://www.xsimulator.net/community/threads/monster-moto-shield-acts-as-a-single-motor-driver-more-power.5482/

Documents:

Schematic

http://cdn.sparkfun.com/datasheets/Dev/Arduino/Shields/MonsterMoto-Shield-v12.pdf

Eagle Files

http://cdn.sparkfun.com/datasheets/Dev/Arduino/Shields/MonsterMoto-Shield-v12.zip

Datasheet (VNH2SP30)

http://cdn.sparkfun.com/datasheets/Dev/Arduino/Shields/10832.pdf

Example Code

http://cdn.sparkfun.com/datasheets/Dev/Arduino/Shields/MonsterMoto_Shield_Example.pde

GitHub (Design Files &Example Code)

https://github.com/sparkfun/Monster_Moto_Shield/tree/Hv12Fv10

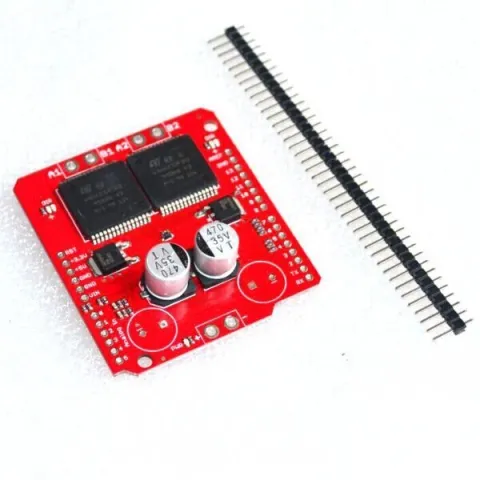

MONSTER MOTO SHIELD VNH2SP30

MONSTER MOTO SHIELD VNH2SP30

Rp 141.120
