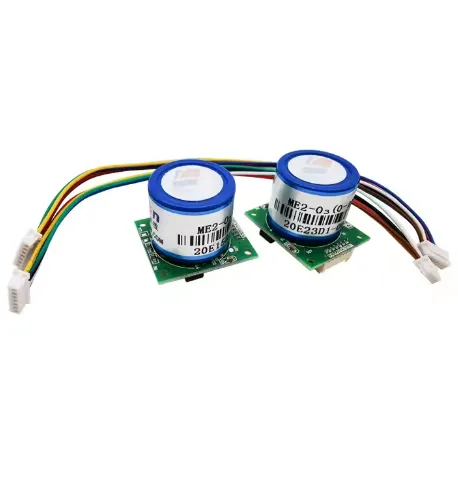

ME2-O3 Electrochemical Ozone Sensor O3 Oxygen Gas Sensor Module O3 Linear Sensor for Civilian Disinfection Cabinet 0-100ppm

ME2-O3 electrochemical gas sensor is fuel cell type, which utilizes the electrochemical oxidation process of O3 gas on the working electrode. The current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.

Application

Widely used in the detection of ozone gas concentration for industrial and environmental protection fields

Features

Low consumption

High precision

High sensitivity

Wide linear range

Good anti-interference ability

Excellent repeatability and stability

Specifications

Detection gas O3

Measurement Range 0~10/0~100ppm

Max detecting concentration 200ppm

Sensitivity ≥30nA/ppm

Resolution ratio ≤0.02ppm

Response time（T90） ≤120S

Load resistance 200Ω（recommended）

Repeatability ＜5% output value

Stability (/month) ＜2%

Output Linearity linear

Zero drift（-20℃～40℃） ≤0.2ppm

Storage temperature -20℃～50℃

Storage Humidity 15%~90%RH (no condensation)

Pressure range Standard atmosphere pressure ±10%

Anticipated using life 2 years（In air）

ME2-O3 Electrochemical Ozone Sensor O3 Oxygen Gas Sensor Module O3 Linear Sensor 0-100ppm

ME2-O3 Electrochemical Ozone Sensor O3 Oxygen Gas Sensor Module O3 Linear Sensor 0-100ppm

Rp 1.293.600
