APPLICATIONS:

- Temperature Sensing with RTD, Thermistor, and Thermocouple

- Bridge Sensing for Pressure, Strain, and Force

- Weight Scales

- Battery Fuel Gauges

SPECIFICATION:

- Operating Voltage: 2.7 - 5.5V

- Standy Current: 300nA 5V

- Operating Temperature: -40C ~ +125C

- On-Board Voltage Reference: 2.048V 0.05%, Drift 15 PPM /C

- On-Board Programmable Gain Amplifier (PGA): x1,x2,x4,x8

- Differential Input Full Scale Range: -2.048V / PGA ~ 2.048V / PGA (e.g., PGA=4, Range is -0.512 ~ 0.512V)

- Programmable Resolution: 12, 14, 16, 18bits

- Programmable Data Rate: 240, 60, 15, 3.75 SPS

- Gain Error: 0.05% (PGA = 1, 18bits)

- Offset Error: 15uV (PGA = 1, 18bits)

- Input Interface: 4 differential channels, PIN header of 2.54mm spacing

- Output Interface: I2C, PIN header of 2.54mm spacing

- Size: 27x16mm(1.06x0.63")

- http://www.dfrobot.com/wiki/index.php/MCP3424_18-Bit_ADC-4_Channel_with_Programmable_Gain_Amplifier_(SKU:DFR0316)

- https://github.com/mcholen/Doc/raw/master/DFR0316_Arduino%20library.zip

- https://github.com/mcholen/Doc/raw/master/DFR0316_linux_iio_mcp3422.zip

- https://github.com/mcholen/Doc/raw/master/DFR0316_V1.0_MCP3424_Datasheet.pdf

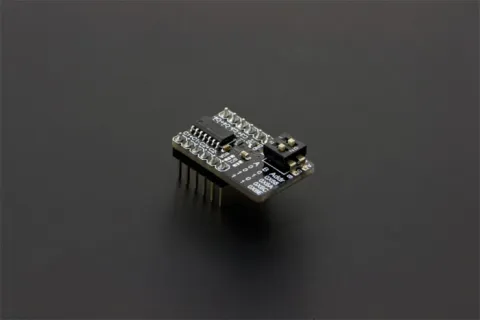

MCP3424 18-Bit ADC-4 Channel with Programmable Gain Amplifier

Rp 225.900
