This is I2C serial interface 16 bit I/O Expander Serial Module.

MCP23017 can convert 16-bit parallel data into serial data of IIC interface and convert each other.

Internal integrated power-on reset (POR) circuit reset to device default state.

Two opposite programmable interrupt source outputs.

Polarity flip register configures GPIO input polarity.

Feature:

16-Bit Remote Bidirectional I/O Port:

-I/O pins default to input

High-Speed I2C Interface (MCP23017):

-100kHz

-400kHz

-1.7MHz

High-Speed SPI Interface (MCP23S17):

-10 MHz (maximum)

Three Hardware Address Pins to Allow Up to

Eight Devices On the Bus

Configurable Interrupt Output Pins:

-Configurable as active-high, active-low or

open-drain

INTA and INTB Can Be Configured to Operate

Independently or Together

Configurable Interrupt Source:

-Interrupt-on-change from configured register

defaults or pin changes

Polarity Inversion Register to Configure the

Polarity of the Input Port Data

External Reset Input

Low Standby Current: 1 μA (max.)

Operating Voltage:

-1.8V to 5.5V @ -40°C to +85°C

-2.7V to 5.5V @ -40°C to +85°C

-4.5V to 5.5V @ -40°C to +125°C

Module Size: 26.5 x 21mm

Weight: 3.5g

Packing List:

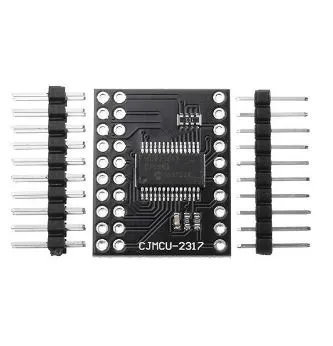

1 x MCP23017 Module

MCP23017 I2C 16 Digital IO Expansion Module

Rp 105.000
