Universal Serial Bus (USB)

Supports full-speed USB (12 Mb/s)

Human Interface Device (HID) device

128-byte Buffer to handle data throughput:

64-byte transmit

64-byte receive

Fully configurable VID, PID assignments and string descriptors

Bus powered (factory default) or self-powered (can be selected through special USB commands)

USB 2.0 Compliant

USB Driver and Software Support

Uses standard HID drivers (built-in support on Windows XP, Vista, 7, Linux and Mac OS)

Configuration utility for devices power-up configuration

Utility for USB-SPI communication, GPIO manipulation and miscellaneous features usage

SPI Master peripheral

Supports all four SPI modes (Mode 0, 1, 2, 3)

Bit-rates from 1500 bps up to 12 Mbps

Configurable delays for SPI transactions:

Chip Select (assert) to 1st byte of data delay

Data to data delay

Data to Chip Select (de-assert) delay

SPI transactions lengths of up to 65535 bytes long

Up to 9 Chip Select lines to be used in any combination for a given SPI transaction (the chip select lines are shared between GPIOs and alternate function pins; certain GPs up to 9 of them can be assigned with the chip select functionality)

General Purpose Input/Output (GPIO) Pins

Nine general purpose I/O pins

EEPROM

256 bytes of user EEPROM (accessible only through certain USB commands)

Parameter Name Value

USB Speed Full Speed

USB Compliant USB 2.0

PHY Yes

MCU Interface SPI

Tx/Rx Buffer Size (Bytes) Tx 64 - Rx 64

No. of GPIO 9

Operating Voltage Range (V) 3.3 to 5.5

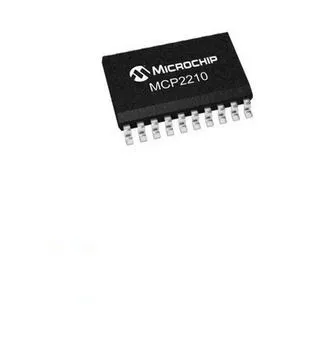

MCP2210-I/SS USB Interface IC USB to SPI Protocol Converter

MCP2210-I/SS USB Interface IC USB to SPI Protocol Converter
