Features

Edison:

- Intel Atom system-on-a-chip (SoC) based on leading-edge 22 nm Silvermont microarchitecture including a dual-core CPU and single core microcontroller (MCU)

- Integrated Wi-Fi, Bluetooth LE, memory, and storage

- Support for more than 30 industry-standard I/O interfaces via a 70-pin connector

- Support for Yocto Linux, Arduino, Python, Node.js, and Wolfram

- Open source community software tools enabling ease of adoption and inspiring third-party app developers to build apps for consumers.

- EDI1.SPON.AL.S (System-On-Modules - SOM Edison Module IoT Internal Antenna)

Arduino Breakout:

- Compatible with Arduino Uno (except only 4 PWM instead of 6 PWM).

- 20 digital input/output pins including 4 pins as PWM outputs

- 6 analog inputs

- 1 UART (RX/TX)

- 1 I2C

- 1 ICSP 6-pin header (SPI)

- Micro USB device connector OR (via mechanical switch) dedicated standard size USB host Type-A connector

- Micro USB device (connected to UART)

- SD Card connector

- DC power jack (7V 15V DC input @ 500mA)

Kelengkapan:

- Intel Edison (EDI1.SPON.AL.S)

- Arduino Breakout Board

https://communities.intel.com/docs/DOC-23139

Barang dijamin 100% baru gan :D

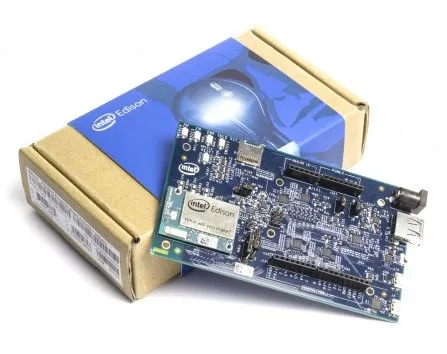

Intel Edison and Arduino Breakout Kit

Intel Edison and Arduino Breakout Kit

Rp 2.250.000

Deskripsi
