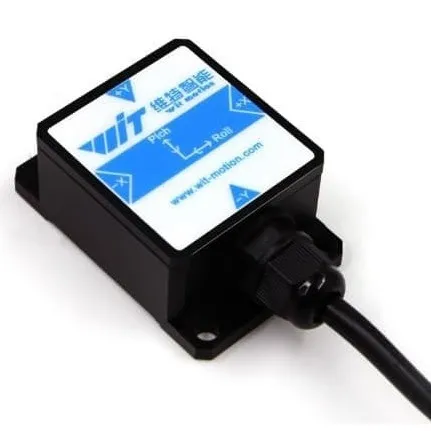

Inclinometer gyroscope 10 Axis Arduino HWT901B Industrial grade HWT901B，standard : 232，9-36V

Penuhi kebutuhan komponenmu di toko ini

Tersedia dalam varian ukuran/model, silahkan pilih sesuai dengan kebutuhan

Happy Shopping!!

- 10 Axis

- 2 Axis

Highlights

HWT901B’s scientific name is AHRS IMU sensor. A sensor measures 3-axis angle, angular velocity, acceleration and magnetic field. HWT901B is employed where the highest measurement accuracy is required. Its strength lies in the algorithm which can calculate three-axis angle accurately.

Robust MEMS designs and high performance in harsh environment

Ground breaking bias stability, low noise level and good vibration robustness

Persued for best data accuracy and stability: WTMOTION patented zero-bias automatic detection calibration algorithm and R&D dynamic fusion algorithm outperforms traditional accelerometer sensor

Technical Specifications:

Current: <40mA

Voltage: 9-36V (requiring a power source of 9-36V)

Data output frequency：0.2-200Hz

Baud Rate: 4800-961200 (adjustable)

Working Temperature: -40℃ ~ +85℃

Output Content: 3-axis Acceleration+Angle+Angular Velocity+Magnetic Field+Quaternion+Air Pressure+Height

Range: Acceleration (±16g), Gyroscope (±2000°/s), Magnet Field (±4900µT), Angle (X, Z-axis: ±180°, Y ±90°), Barometer (1 axis)

Resolution: Acceleration (0.005g), Gyroscope (0.61°/s), Magnet Field (16 bits)

Angle Accuracy(after calibrated): X, Y-axis: 0.05° (Static) , X, Y-axis: 0.1° (Dynamic)

Note: Z-axis angle will be affected by magnetic field. It is required to calibrate and keep the sensor at least 20cm away from the stuff like metal that may create magnetic field interference.

Inclinometer gyroscope 10 Axis Arduino HWT901B Industrial grade

Inclinometer gyroscope 10 Axis Arduino HWT901B Industrial grade

Rp 1.950.000

Rp 1.985.000
