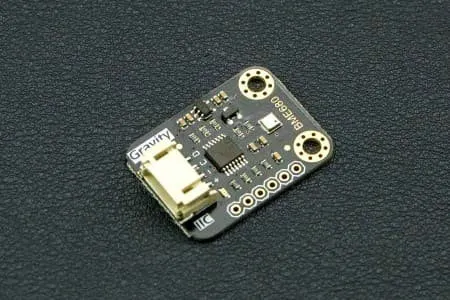

DFRobot BME680 Environmental Sensor is a low power gas, pressure, temperature & humidity sensor based on BOSCH BME680 sensor. It is a 4-in-1 multi-functional MEMS environmental sensor which integrates VOC (Volatile Organic Compounds) sensor, temperature sensor, humidity sensor and barometer.

FEATURES

- MEMS sensor, small size, low power consumption, high reliability

- Wide voltage input, compatible with 3.3V and 5V controller

- Highly integrated environmental sensor: temperature, humidity, barometer and VOC, four-in-one environmental parameter monitoring

- Gravity I2C connector, plug and play, while reserving XH2.54 SPI connector for expansion

- Small size and easy to install

APPLICATIONS

- Indoor air quality monitoring

- Weather station

- Smart home

- Internet of Things

- Wearable

SPECIFICATION

- Input Voltage: 3.3V~5.0V

- Operating Current: 5mA (25mA in VOC)

- Wiring Connector: Gravity I2C

- Connector in Reserve: SPI

- Temperature Measurement Range: -40℃~+85℃

- Temperature Measurement Precision: ±1.0℃(0~65℃)

- Humidity Measurement Range: 0-100%r.H.

- Humidity Measurement Precision: ±3%r.H.(20-80% r.H.,25℃)

- Atmospheric Pressure Measurement Range: 300-1100hPa

- Atmospheric Pressure Measurement Precision: ±0.6hPa(300-1100hPa,0~65℃)

- IAQ (Indoor Air Quality) Range: 0~500 (the larger the worse)

- Module Size: 30 × 22(mm) / 1.18 x0.87(inches)
