Product Description

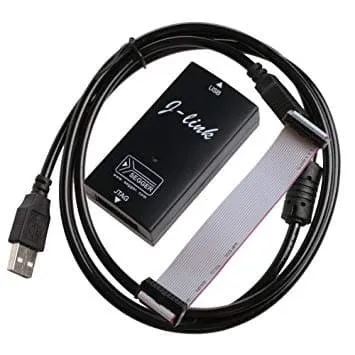

J-LINK V8 Debugger, J-LINK Arm Cortex-M4 / M0 XMC Emulator

features

USB2.0 Interface

support ARM7 / 9/11, Cortex-A5 / A8 / A9, Cortex-M0 / M1 / M3 / M4, Cortex-R4 core

supports Serial Wire Debug (SWD)

supports Serial Wire Viewer (SWV)

download speeds of up to 720kb / s

DCC mode up to 800kb / s

can be integrated with Keil, ADS, RVDS,IAR Workbench seamlessly

no external power source, via USB to take power

maximum JTAG speed of 12MHz

Automatic Identificate kernel

speed automatic recognition

support adaptive clock

All JTAG signals can be monitored automatically adapts to the target board voltage

support multicore debugging

fully Plug and Play

including 20-pin standard JTAG connector

support 1.2V ~ 5V voltage target

including USB and 20-pin flat cable

support future Cache Tracking Embedded Trace Buffer (ETB)

optional online programming, software programming FLASH

RDI plug-in makes J-Link for any RDI compliant debugger such as ADS, Relview, IAR etc.

with J-Link TCP / IP server, allows the use of J-Link via TCP / IP network

the supported operating systems

Microsoft Windows 2000

Microsoft Windows XP

Microsoft Windows XP x64

Microsoft Windows 2003

Microsoft Windows 2000 x64

Microsoft Windows Vista

Microsoft Windows Vista x64

Windows 7

Windows 7 x64

Supported Software

direct support ADS, IAR, KEIL, WINARM, REALVIEW other development environment

support devices

supports all ARM7, ARM9 series of embedded microcontrollers with JTAG interface

Supports all Cortex-M series of embedded microcontrollers with JTAG / SWD interface

High Speed J-Link JLink V8 USB ARM JTAG Emulator Debugger J-Link V8 Em

Rp 315.000
