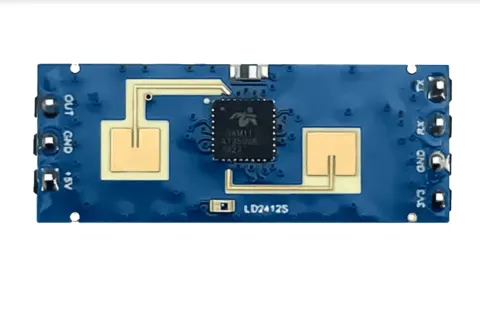

LD2412 is a high sensitivity 24GHz human presence sensing module developed by Hi-Link. Its working principle is to use FMCW FM continuous wave to detect the human body target in the set space, combined with radar signal processing and accurate human body sensing algorithm, to achieve highly sensitive human presence state sensing, can identify the human body in motion and static state, and can calculate the distance of the target and other auxiliary information.

This product is mainly used in indoor scenes, sensing whether there is movement or micromovement of the human body in the area, real-time output of detection results. The maximum sensing distance can reach 9 meters, and the distance resolution is 0.75m. Provide visual configuration tools, which can easily configure the induction distance range, induction sensitivity of different intervals and unmanned delay time, etc., to adapt to different specific application requirements.

Support GPIO and UART output, plug and play, can be flexibly applied to different intelligent scenarios and end products.

Module Features

* Plug and play, simple assembly method

* The longest sensing distance is up to 9m, configurable nearest and farthest detection distance

* Large detection angle, coverage range up to ±75 degrees

* Multi-level intelligent parameter adjustment to meet the needs of scene changes

* Visual debugging and configuration tools

* Compact and simplified, supports multiple installation methods such as ceiling-mounted and wall-mounted

* 24GHz ISM band, certified to FCC and CE spectrum regulations

* The ultimate cost-effective choice
