This high-sensitivity 24GHz human presence sensing radar module utilizes FMCW (frequency-modulated continuous wave) to detect human targets in the set space. Combined with radar signal processing and accurate human sensing algorithm, it can achieve high-sensitivity sensing of human presence status, which can identify human body in motion and stationary state and calculate auxiliary information like the distance to the target.

The sensing effect of the radar module is insusceptible to environmental factors like temperature, brightness, humidity, light fluctuations, etc. Besides, FMCW radars can penetrate materials, which enables this module to work well in a shell without opening holes.

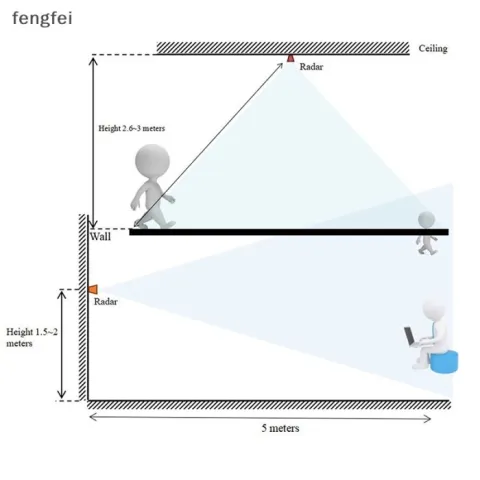

This microwave radar is mainly used in indoor scenarios to sense whether there is a moving or micro-moving human in the detection area and output the detection results in real time. It offers a sensing distance of up to 6 meters and a resolution of 0.75m. Besides, it provides serial communication protocol so users can configure the sensing distance range, sensing sensitivity in different intervals, and delay time for different applications.

24GHz Human Presence Sensing Module

FEATURES

5-12V wide supply voltage

High sensitivity, wide detection angle of 120°

Sensing distance up to 6m, capable of outputting distance value

Long and narrow shape with a width of 7mm, small in size, and easy to embed

Support UART &GPIO (high/low level) output

APPLICATIONS

Smart light control

Human body induction wake-up of advertising screen

UV light control

Home security

SPECIFICATION

Operating Frequency Range: 24GHz-24.25GHz

Modulation Mode: FMCW

Operating Voltage: DC 5V-12V

Average Operating Current: 80mA

Detection Distance: 0.75m-6m (Measured blind zone distance: 30cm)

Detection Angle: ±60°

Interface: UART &GPIO (3.3V I/O level)

Default Baud Rate: 57600

Distance Resolution: 0.75m

Sweep Bandwidth: 250MHz

Ambient Temperature: -40 to 85℃

Dimension: 7mm×35mm/0.28×1.38"
