This high-sensitivity 24GHz human presence sensing radar module utilizes FMCW (frequency-modulated continuous wave) to detect human targets in the set space. Combined with radar signal processing and accurate human sensing algorithm, it can achieve high-sensitivity sensing of human presence status, which can identify human body in motion and stationary state and calculate auxiliary information like the distance to the target.

The sensing effect of the radar module is insusceptible to environmental factors like temperature, brightness, humidity, light fluctuations, etc. Besides, FMCW radars can penetrate materials, which enables this module to work well in a shell without opening holes.

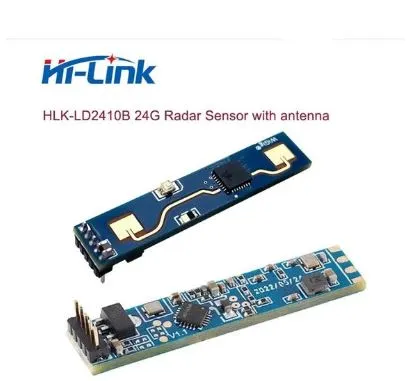

24GHz Human Presence Sensing Module

FEATURES

5-12V wide supply voltage
High sensitivity, wide detection angle of 120°
Sensing distance up to 6m, capable of outputting distance value
Long and narrow shape with a width of 7mm, small in size, and easy to embed
Support UART & GPIO (high/low level) output

APPLICATIONS

Smart light control
Human body induction wake-up of advertising screen
UV light control
Home security

SPECIFICATION

Operating Frequency Range: 24GHz-24.25GHz
Modulation Mode: FMCW
Operating Voltage: DC 5V-12V
Average Operating Current: 80mA
Detection Distance: 0.75m-6m (Measured blind zone distance: 30cm)
Detection Angle: ±60°
Interface: UART & GPIO (3.3V I/O level)
Default Baud Rate: 57600
Distance Resolution: 0.75m
Sweep Bandwidth: 250MHz
Ambient Temperature: -40 to 85℃
Dimension: 7mm×35mm/0.28×1.38"
