The DFRobot Expansion shield introduced to the market the famous color code for sensors and actuators input and output. The 3 pin format for Signal, Voltage and Ground is extremely useful, specially if used altogether with our increasingly large range of modules, sensors and devices that just fit .

Alternatively, the board includes power input for salvaged power supplies or laboratory power supplies. Very common Xbee socket for multipurpose wireless connectivity such as RF, wireless, bluetooth.

The new version includes a voltage hardware setting through a jumper to allow compatibility with a bigger range of components at 3.3v like Raspberry pi, Due and others.

It also includes a Servo external power, with a protective diode. This way you can enable a large range of servos from your Arduino.

Latest version features a convenient switch that lets you program your ATmega328 boards like UNO, while you have another Serial device connected like a Xbee. Switch it, program it and get it back up and running with another switch. You don't need to disassemble your hardware or wiring.

A LED on top board and a reset button is in order to make it just a natural extension to Arduino boards. The LED is connected to pin 13.

FEATURES :

Compatible with the new Arduino Due

3.3V/5V operating voltage select

Switch for wireless communtcation & programme

More Easily recognitive interfaces

Colorful header for illustrating digital or analog pins

Immersion gold surface

SPECIFICATION:

Input Voltage

7-12V, PWR_IN

4.8-6V, SERVO_PWR, depending on your servo

Compatible module voltage: 5V/3.3V

Support interface: I2C, SPI, Xbee (Xbee pro), Bluetooth, APC220

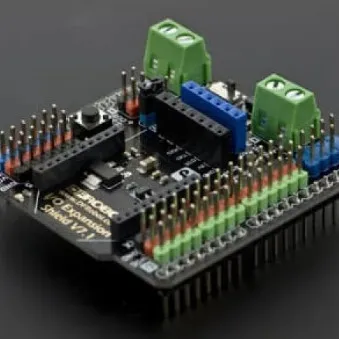

Gravity IO Expansion Shield for Arduino V7.1
