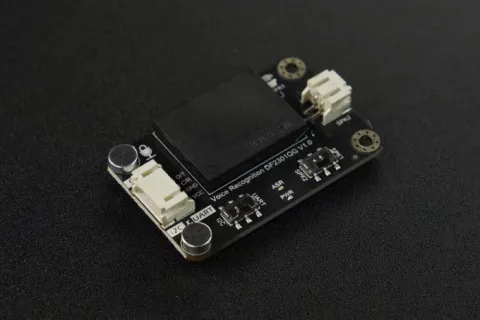

This Gravity: Offline Voice Recognition Sensor is built around an offline voice recognition chip, which can be directly used without an internet connection. It comes with 121 built-in fixed command words and supports the addition of 17 custom command words. Any sound could be trained as a command, such as whistling, snapping, or even cat meows, which brings great flexibility to interactive audio projects.

. It comes with a built-in speaker and an external speaker interface for real-time voice feedback of recognition results. The module uses both I2C and UART communication methods and supports various 3.3V or 5V controllers, including the micro:bit, Arduino (Arduino UNO, Arduino Leonardo, Arduino MEGA), Raspberry Pi, FireBeetle series, and more.

FEATURES

Self-learning function: Control the module to learn command words by the voice, and any audio can be trained as a command

Support I2C and UART, with a Gravity interface

Compatible with 3.3V/5V

Built-in with 121 commonly-used fixed command words

The module has a built-in speaker and an interface for an external speaker, which can provide real-time voice feedback on recognition results

Equipped with power indicator (red) and recognition status indicator (blue)

Dual microphones provide better noise resistance and longer recognition distance

Compatible with Arduino controllers: Arduino UNO, Arduino Leonardo, Arduino MEGA, FireBeetle series controllers, Raspberry Pi, ESP32

APPLICATIONS

Voice recognition interaction

Voice-controlled terminal

Competition and project development

SPECIFICATION

Operating Voltage: 3.3 - 5V

Maximum Operating Current: ≤370 mA (5V)

Communication: I2C/UART

I2C Address: 0x64

Fixed Command: 121

Fixed Wake-up Command: 1

Custom Command: 17

Learning Activation Command: 1

Onboard Microphone Sensitivity: -28db

Module Size: 49×32
